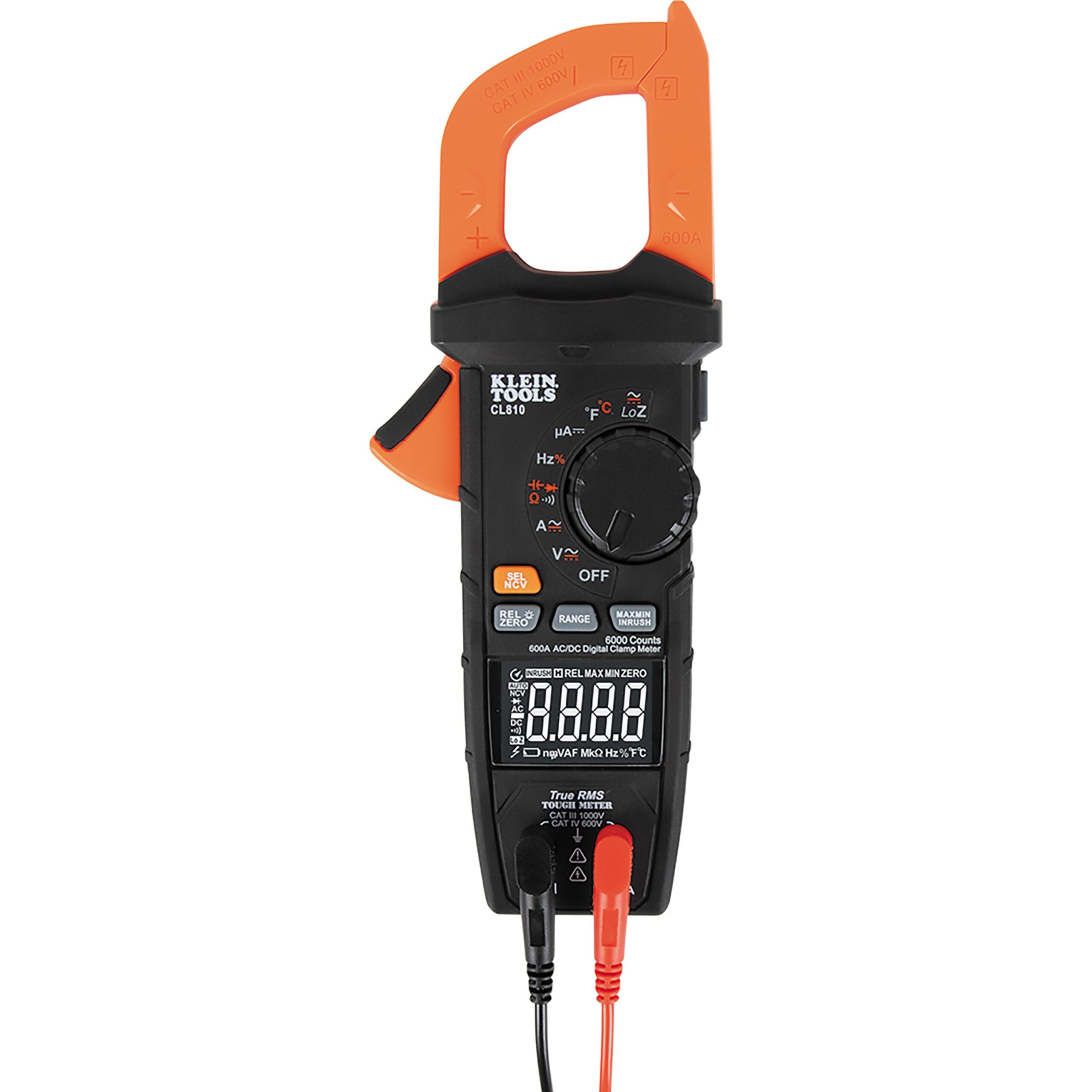

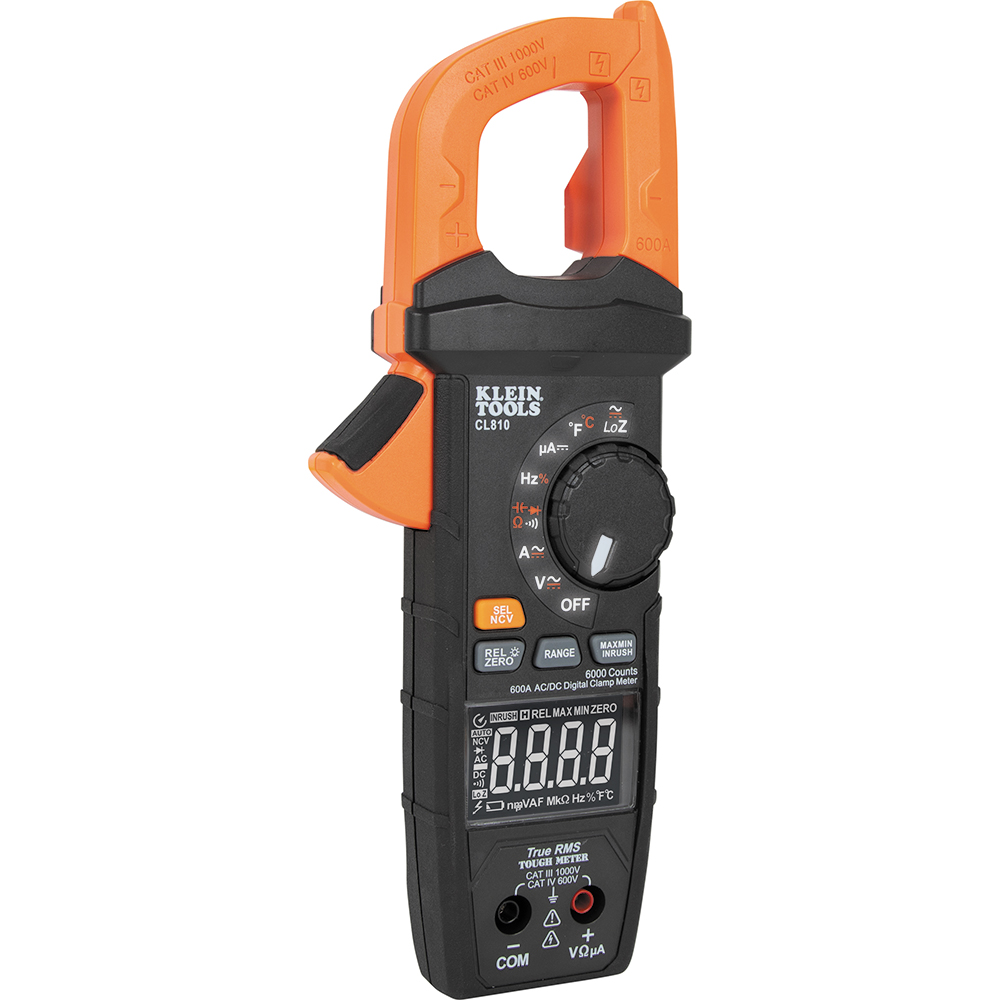

KLEIN 600 Amp, 1000V AC/DC Auto-Ranging Digital Clamp Meter with Work Light

Description

PRODUCT DESCRIPTION
Klein Tools CL810 is a professional 600A AC/DC True RMS clamp meter designed for electricians, HVAC technicians, maintenance professionals, and electrical troubleshooting. It measures up to 1000V AC/DC and 600A AC/DC, with additional functions for resistance, DC microamps, temperature, capacitance, frequency/duty cycle, inrush current, diode testing, and continuity. A 6000-count transflective reverse-contrast display, illuminated dial, built-in worklight, LoZ mode, and integrated non-contact voltage detection make it well suited to field diagnostics in both bright and low-light conditions.

FEATURES
• True RMS (TRMS) technology provides accurate and reliable measurements across a variety of electrical applications
• Measures AC/DC voltage up to 1000V and AC/DC current up to 600A
• Measures resistance up to 60MO, capacitance up to 6000µF, and frequency from 10Hz to 60kHz
• Measures DC microamps for applications such as flame-sensor testing
• Temperature measurement range of -40°F to 1832°F (-40°C to 1000°C) using the included thermocouple
• Inrush function captures starting current for motors and other electrical loads
• Low impedance (LoZ) mode helps identify and eliminate ghost voltages for more reliable troubleshooting
• Non-contact voltage detection is integrated into the clamp jaw, with audible and visual indicators that intensify as the meter approaches a voltage source

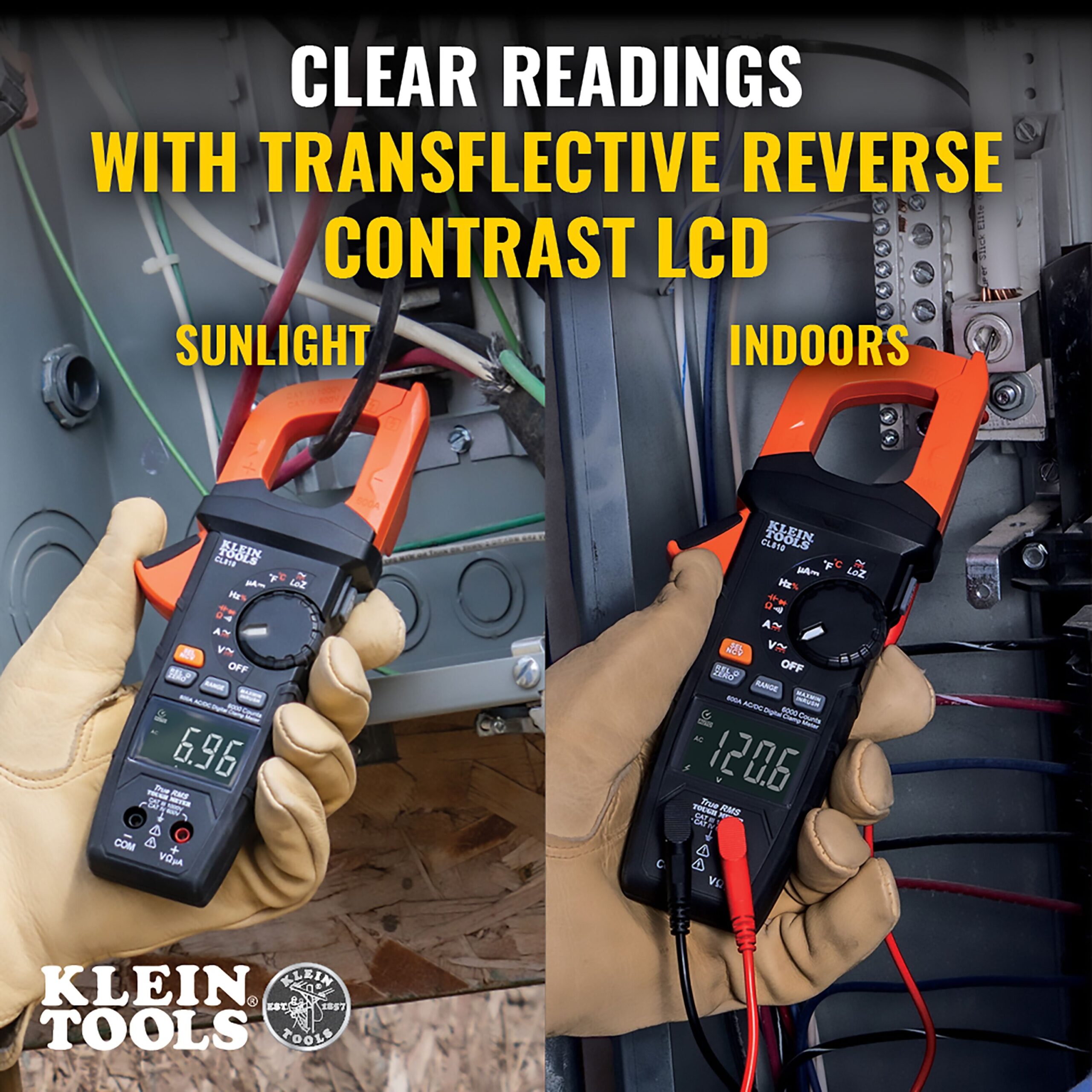

• 6000-count transflective reverse-contrast LCD provides excellent visibility in bright sunlight and dark environments

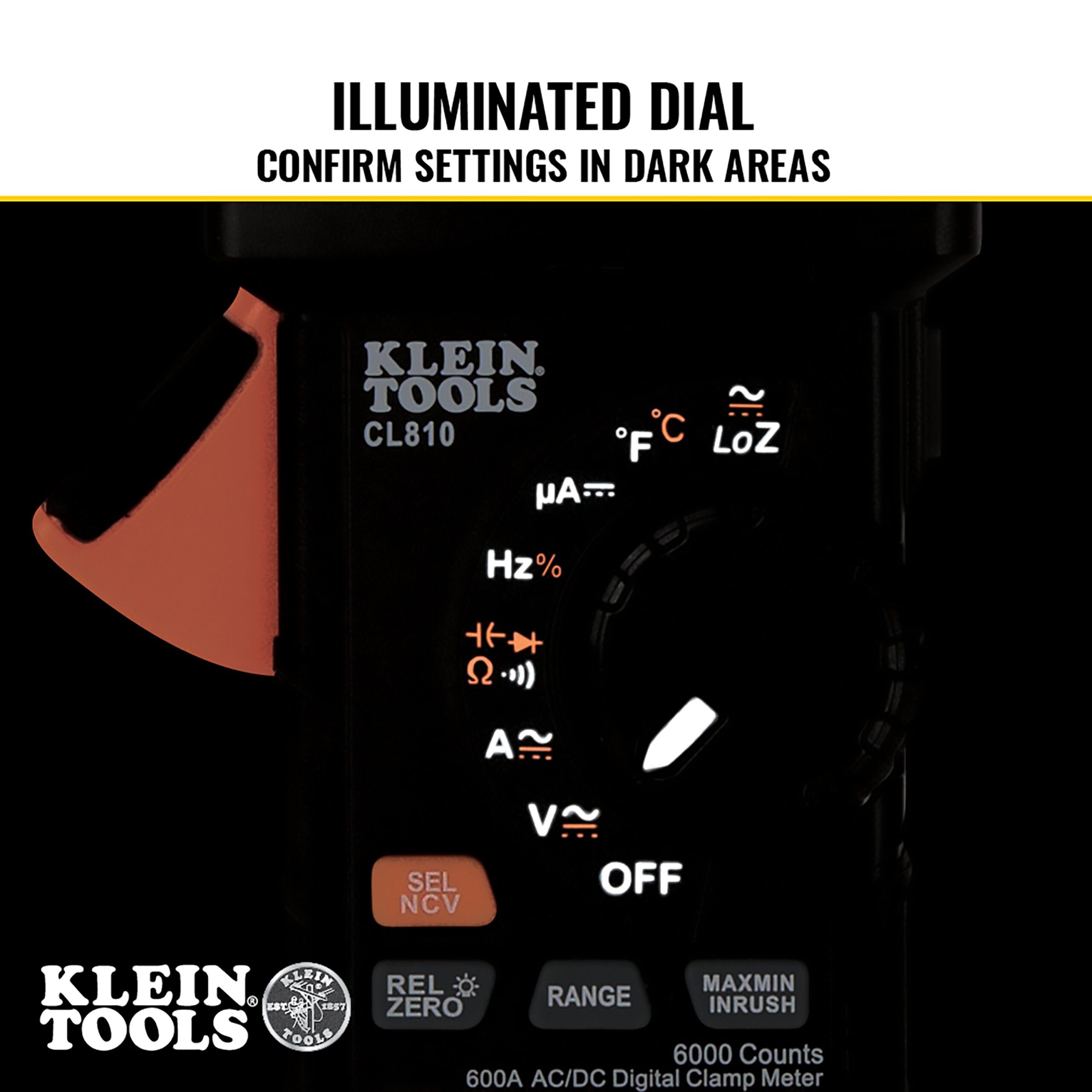

• Illuminated dial makes settings easier to identify in low-light work areas

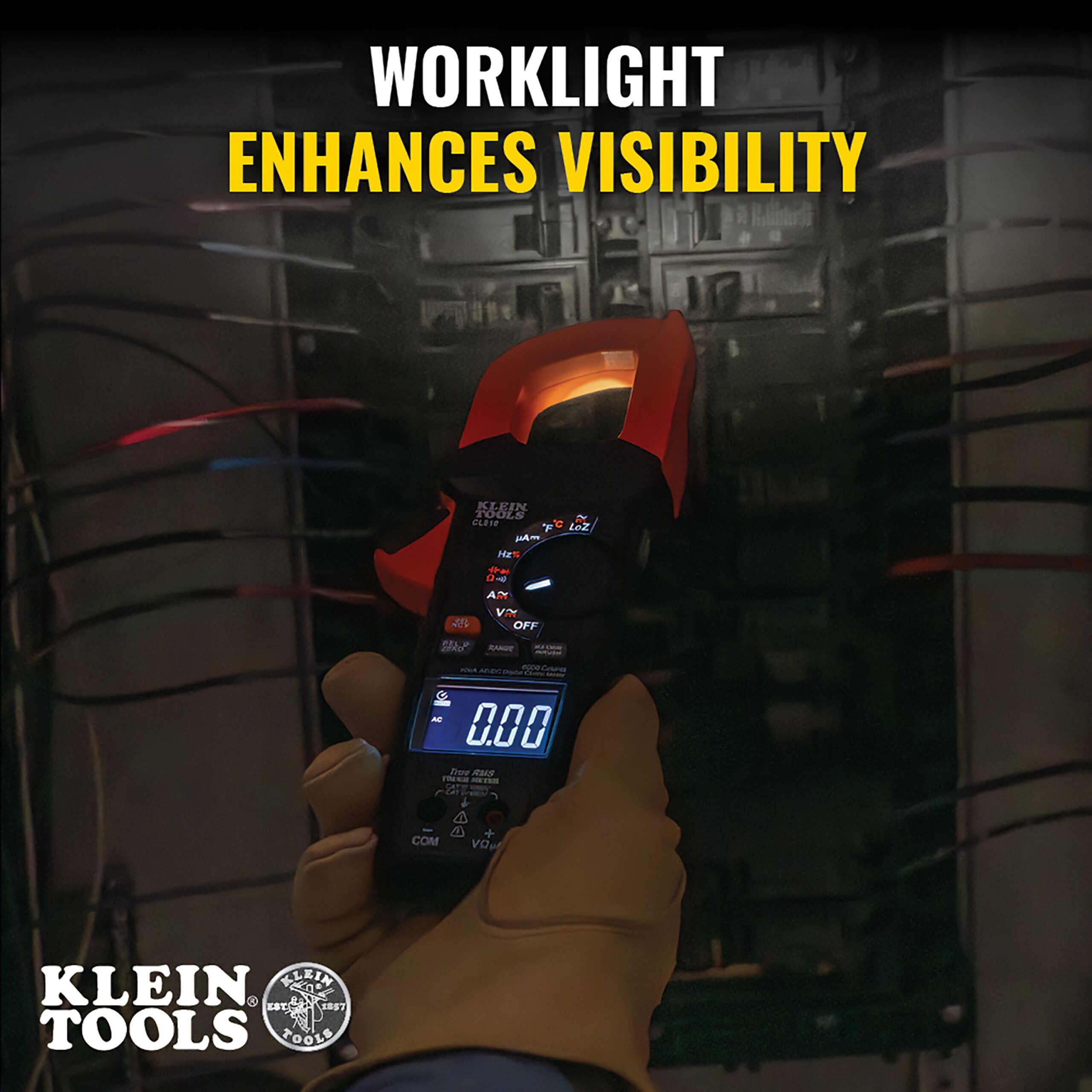

• Integrated worklight illuminates dark or confined work areas
• Includes Min/Max, Rel/Zero, and Data Hold functions
• Auto-ranging operation simplifies measurement setup
• Auto power-off helps conserve battery life

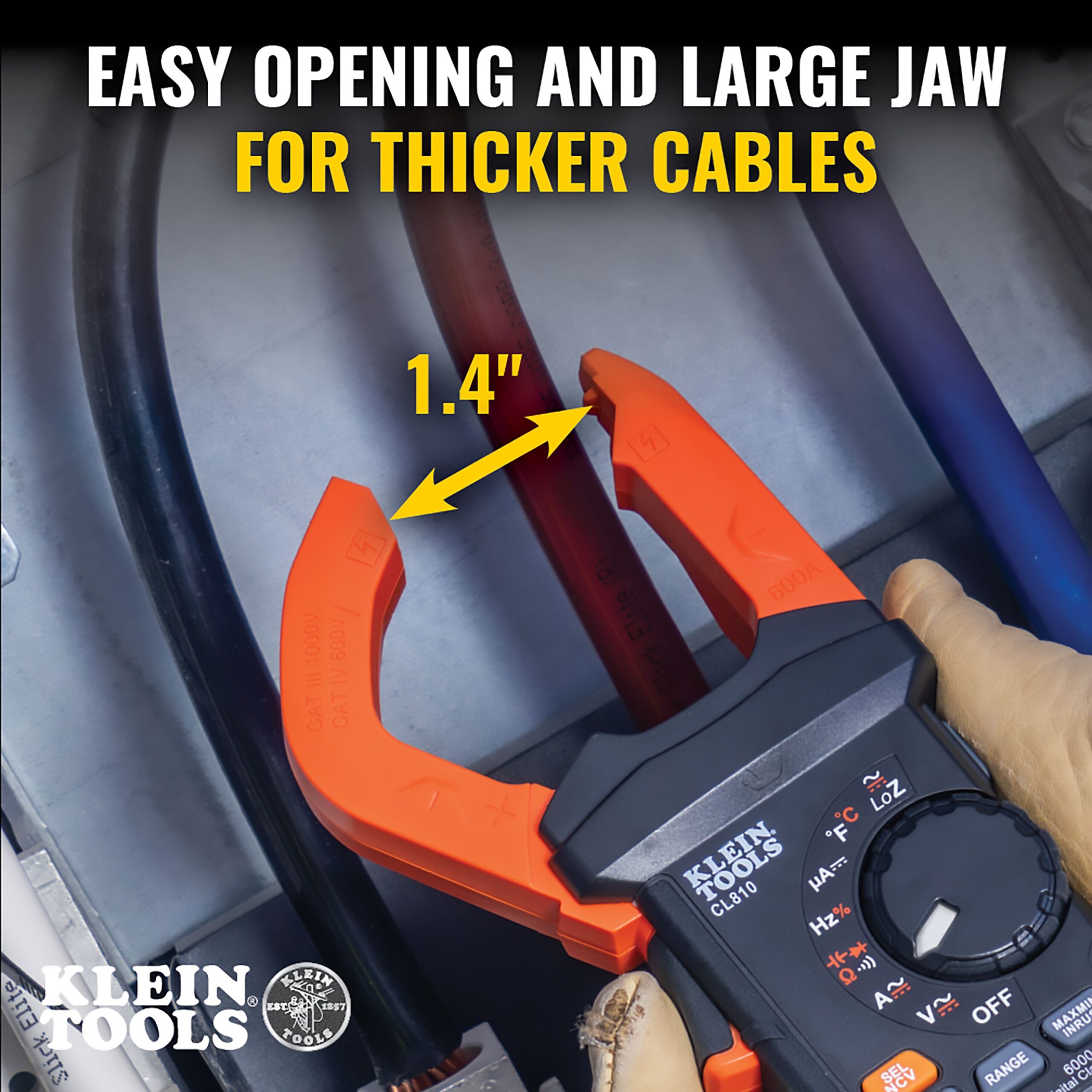

• 1.4″ (3.6 cm) jaw opening
• IP40 rated for ingress protection
• Designed to withstand drops from up to 6.6′ (2 m)
• Ergonomic overmold provides a comfortable grip with easy thumb adjustment of the dial
• Side-mounted test lead holder helps position a probe while testing
• Back mount accepts optional Klein magnetic hangers (69445 or 69417) for hands-free operation
• CAT IV 600V and CAT III 1000V rated
• Class 2 double insulated

FOR FIELD DIAGNOSTICS
The CL810 combines a broad range of electrical measurements with LoZ, inrush, temperature, NCV detection, and a built-in worklight for everyday troubleshooting and service work.

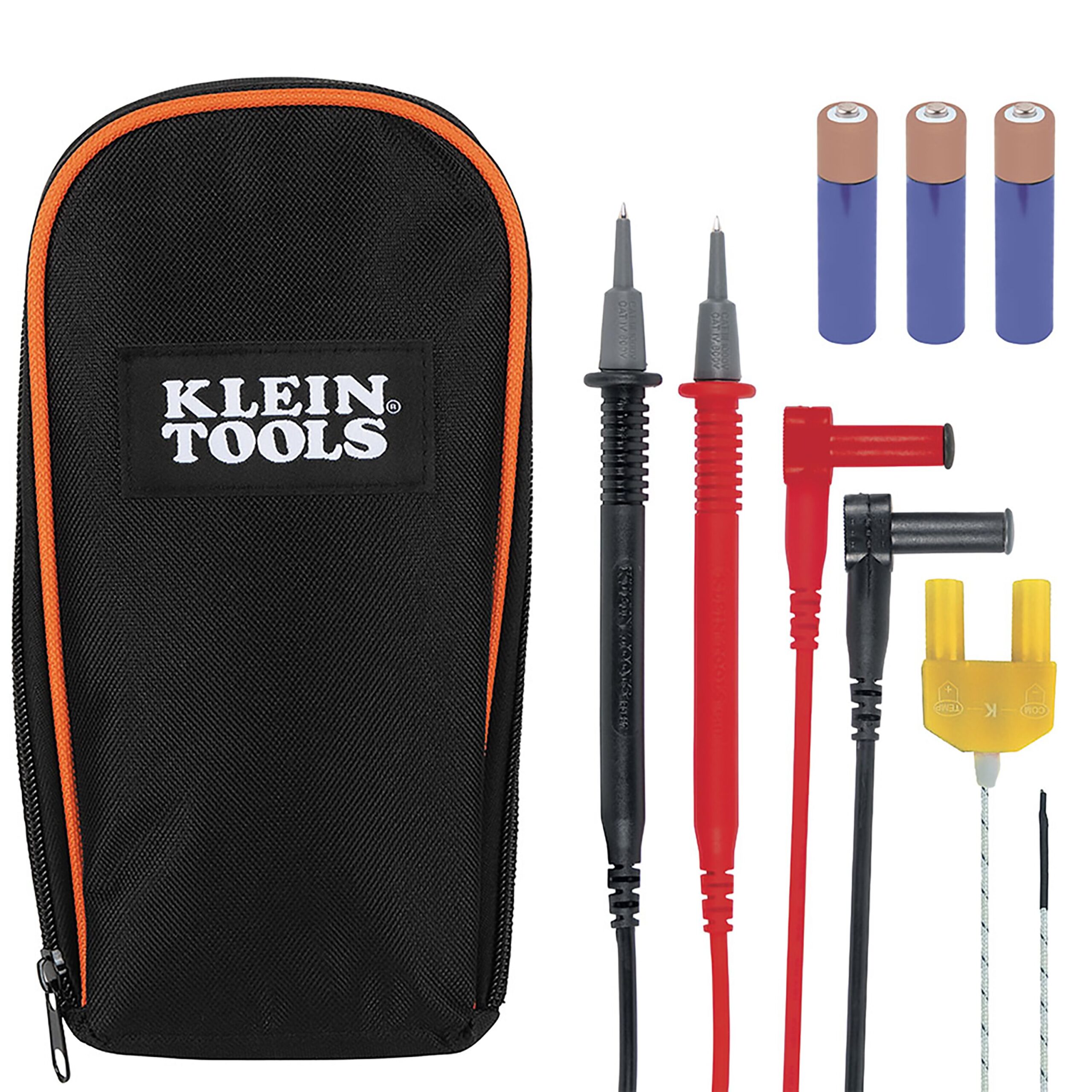

INCLUDES
(1) Klein CL810 600A AC/DC Auto-Ranging TRMS Clamp Meter
(1) Set of Right-Angle Input Test Leads
(1) Thermocouple
(1) Storage Pouch
(1) Instruction Manual
(3) AAA Batteries
