MILESCRAFT HingeJigPLUS Door Hinge, Latch and Strike Plate Jig

Description

PRODUCT DESCRIPTION

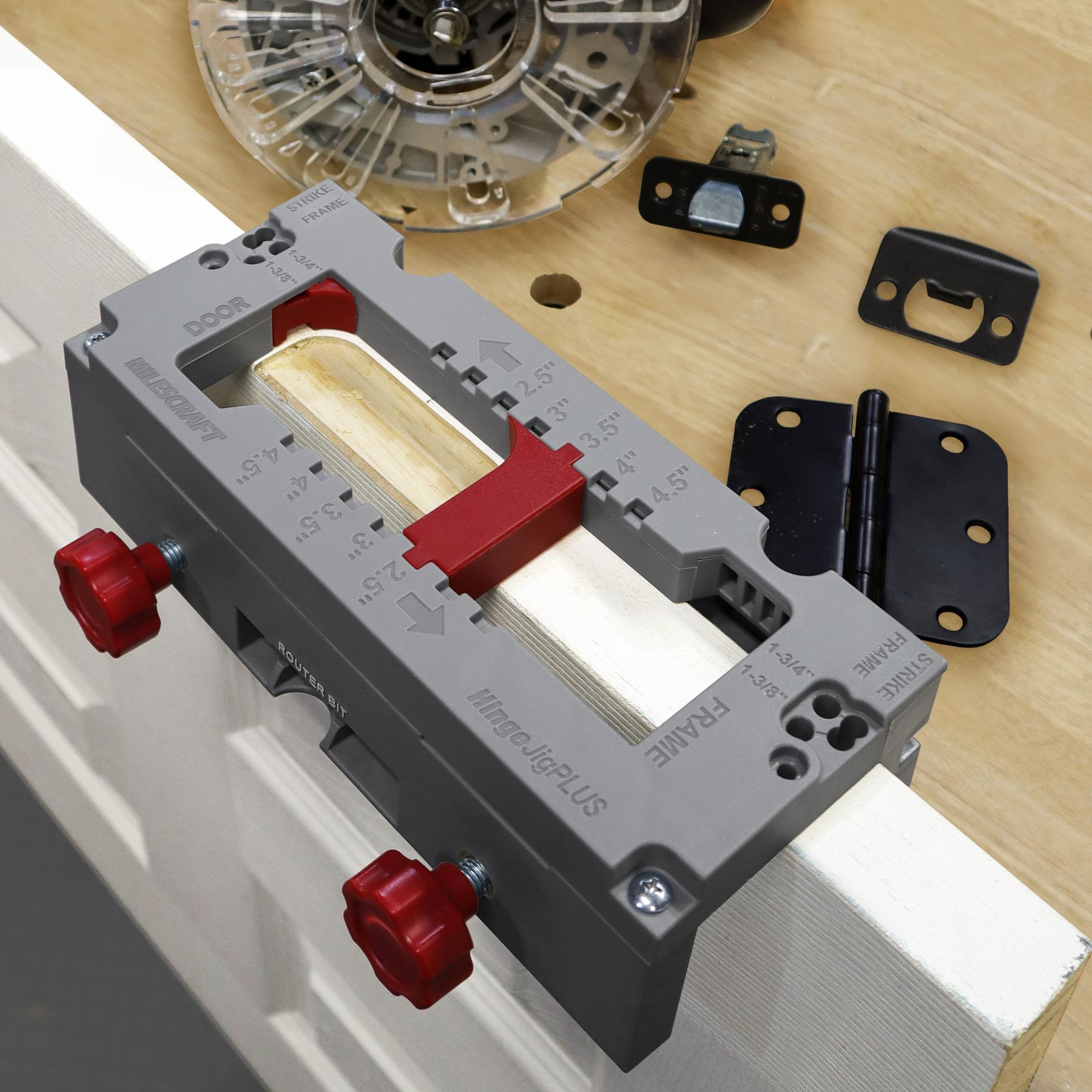

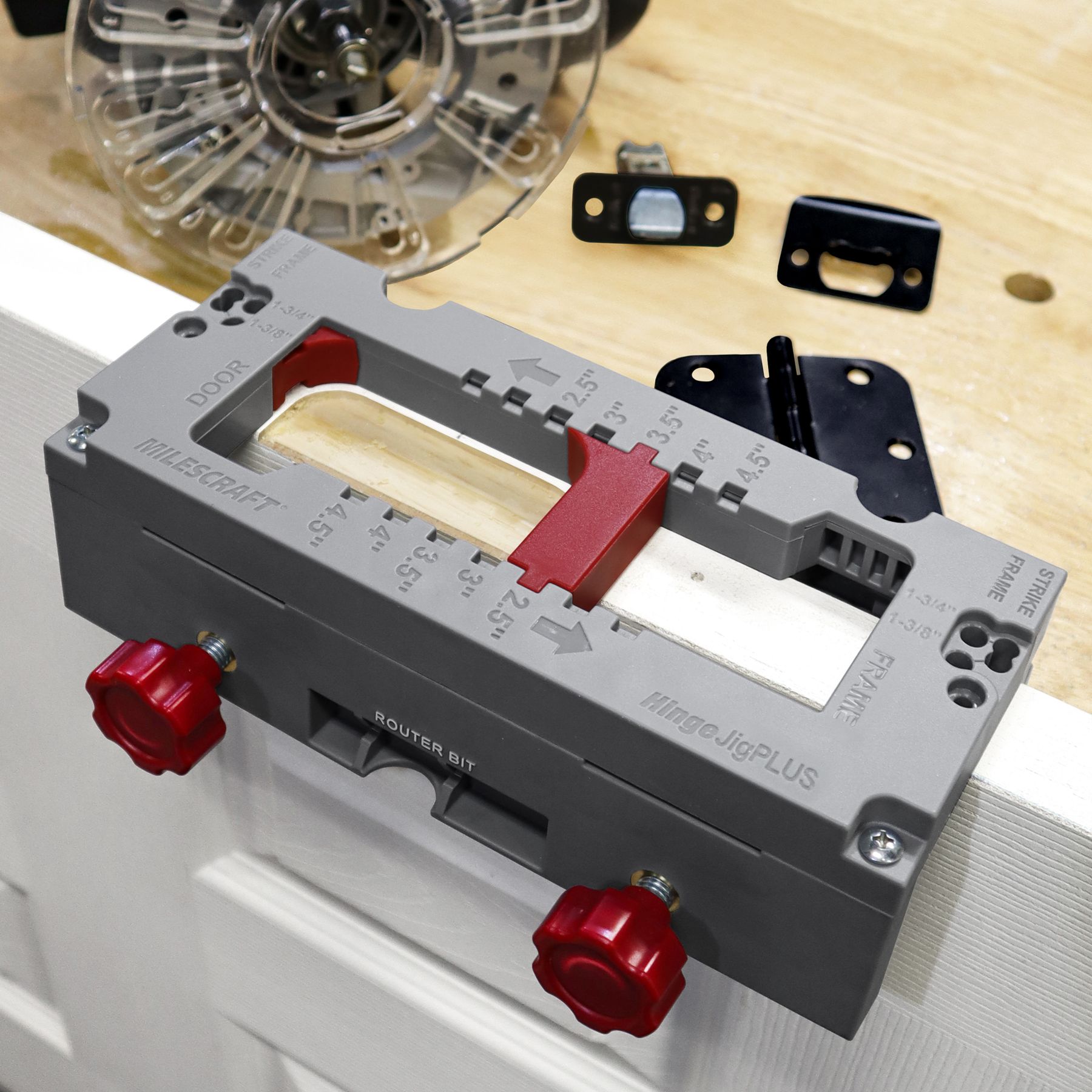

The MILESCRAFT HingeJigPLUS is a self-clamping routing jig for cutting hinge, latch and strike plate mortises in doors and jambs. Its padded dual-clamp design mounts securely without screws or nails, helping prevent surface damage while keeping the jig firmly positioned for clean, accurate cuts.
Adjustable settings accommodate standard 1-3/8″ and 1-3/4″ doors, hinge sizes from 2-1/2″ to 4-1/2″, and several common latch and strike plate sizes. The jig can also be reconfigured for frame and jamb work. A built-in depth gauge simplifies router setup, while the included bearing-guided router bit produces smooth, consistent mortises.

FEATURES
• Self-clamping design mounts without screws or nails
• Padded dual clamps help protect finished doors
• Fits standard 1-3/8″ and 1-3/4″ thick doors
• Cuts mortises for 2-1/2″, 3″, 3-1/2″, 4″ and 4-1/2″ hinges

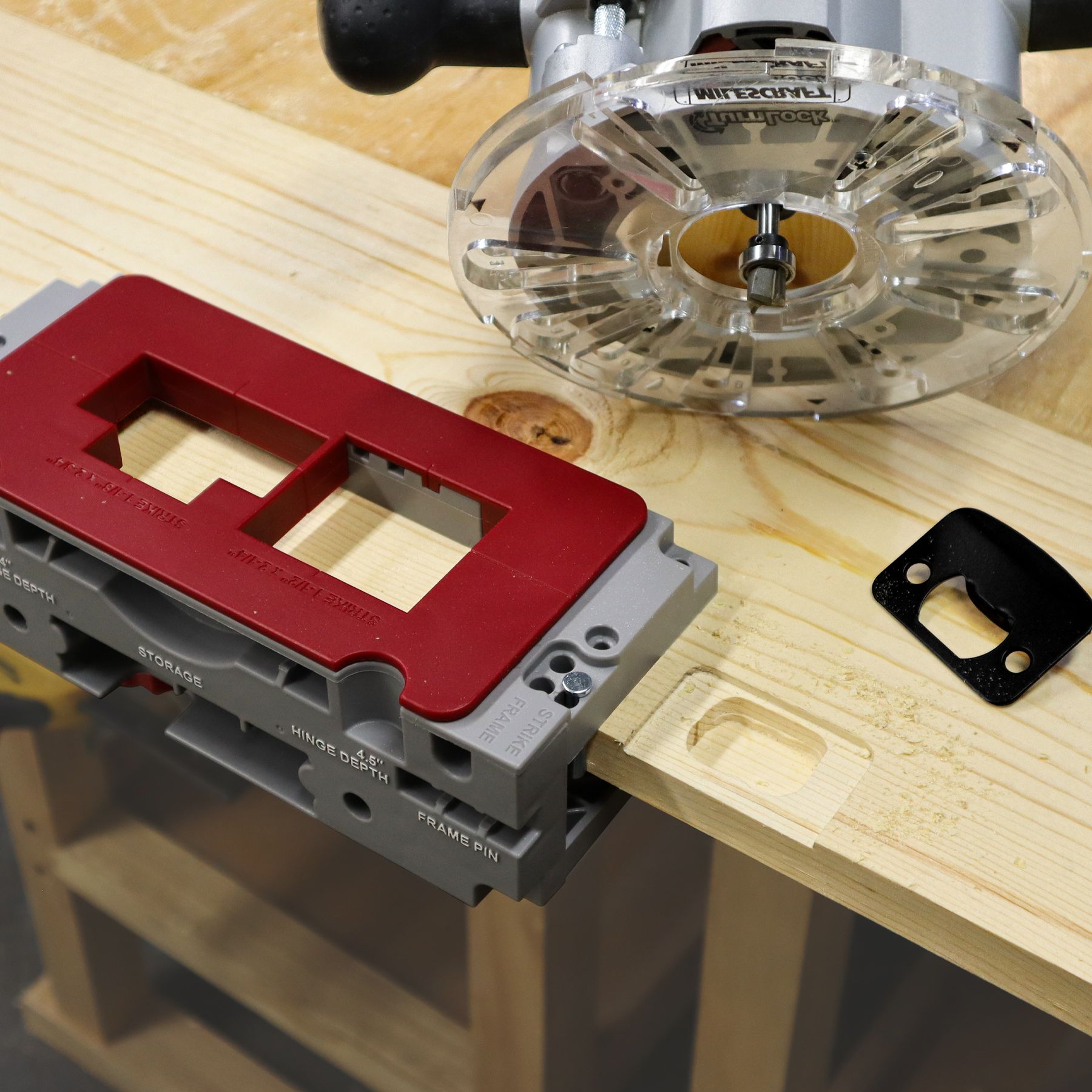

• Reconfigures for routing hinges and strike plates on frames and jambs
• Supports 1/4″ radius, 5/8″ radius and square hinge corners
• Square-corner mortises require finishing with a chisel

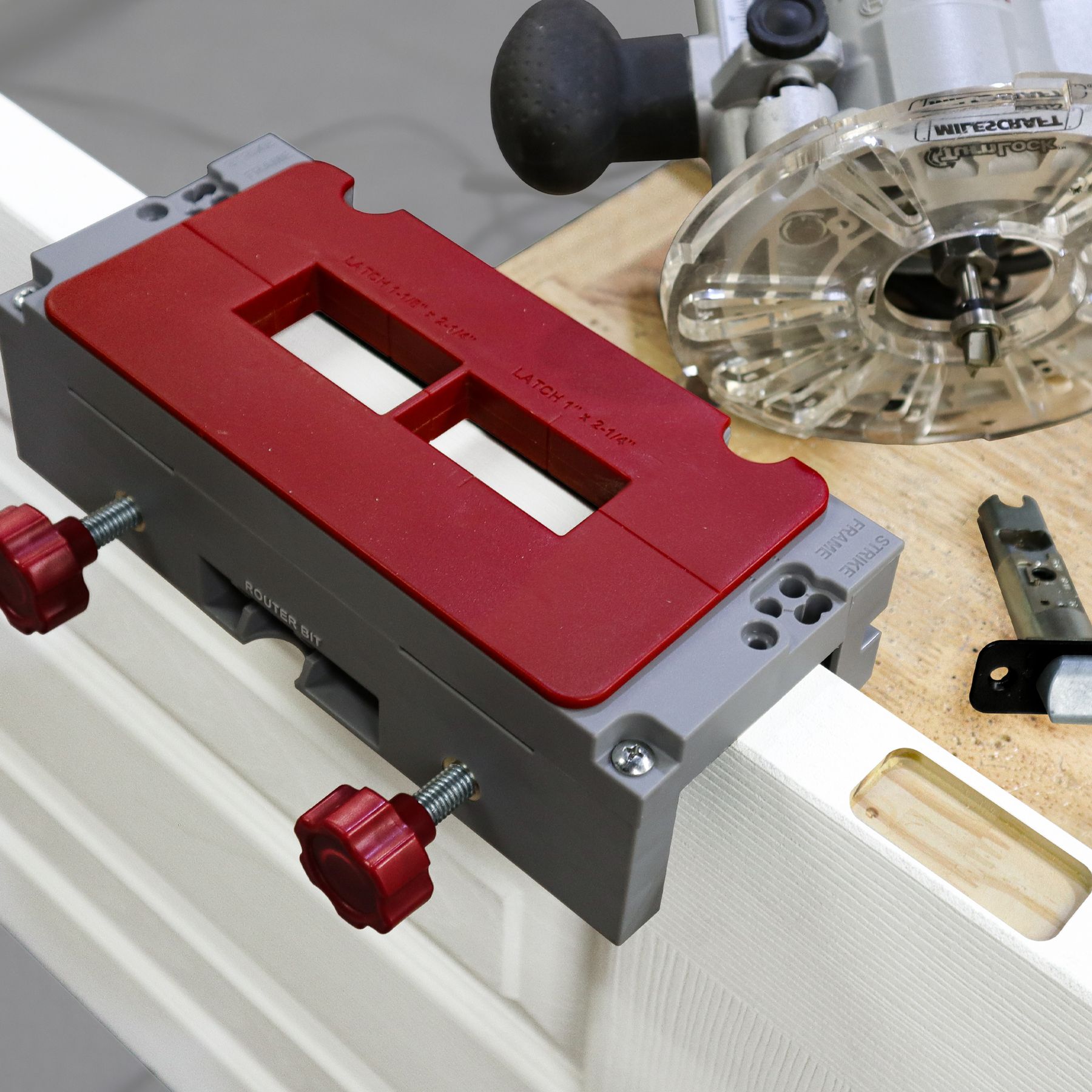

• Includes drop-in templates for common latch and strike plate sizes
• Built-in depth gauge simplifies router-bit setup
• Adjustable backset plugs accommodate door hinge and latch routing
• Bearing-guided 12 mm router bit provides clean, controlled cuts

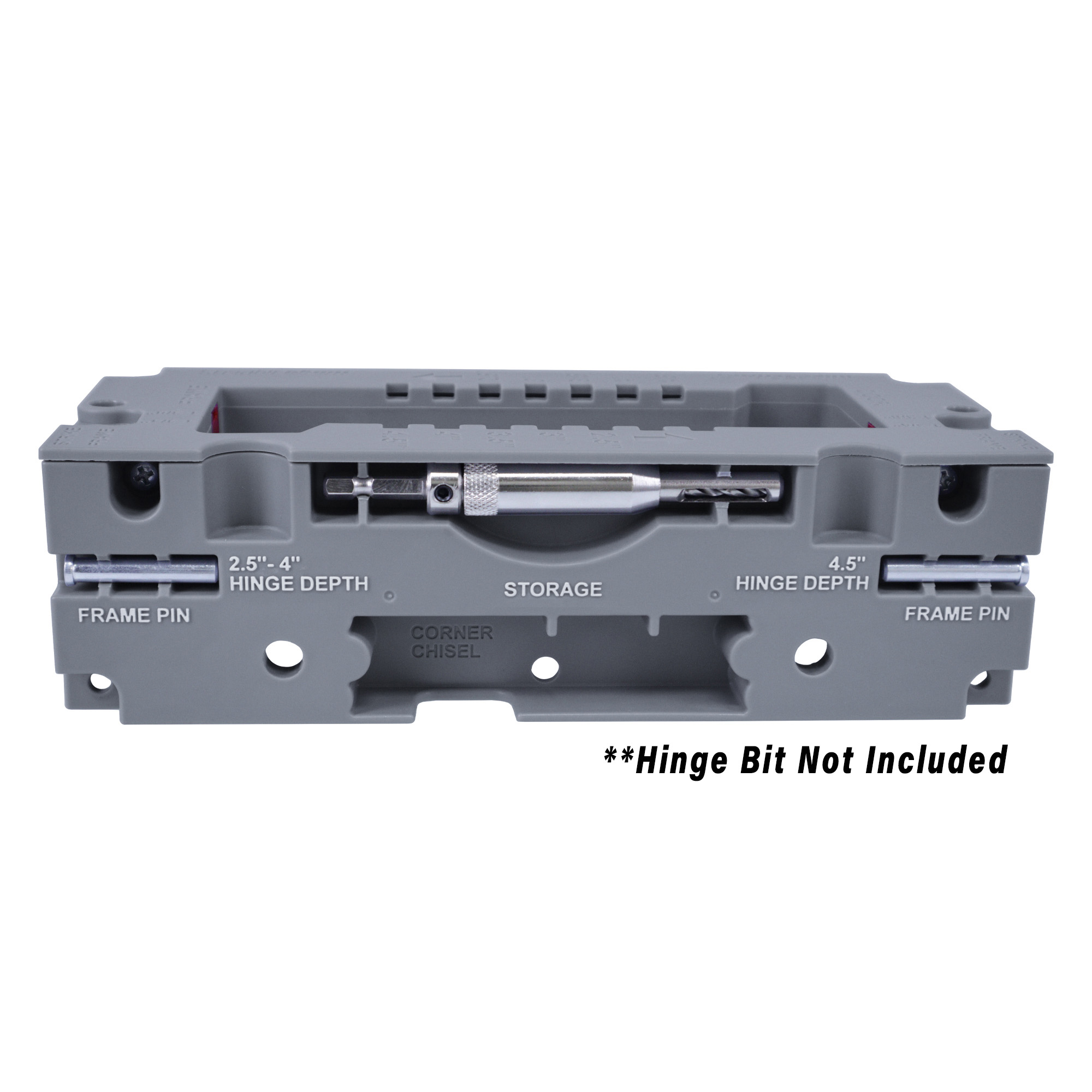

• Built-in storage holds the router bit and an optional centering hinge bit
• Designed for North American-style door hardware

ONE JIG FOR DOORS, JAMBS, AND HARDWARE
The HingeJigPLUS is a practical choice for carpenters, installers and renovation crews who need one reusable jig for hanging new doors, replacing damaged doors or updating hinges, latches and strike plates.

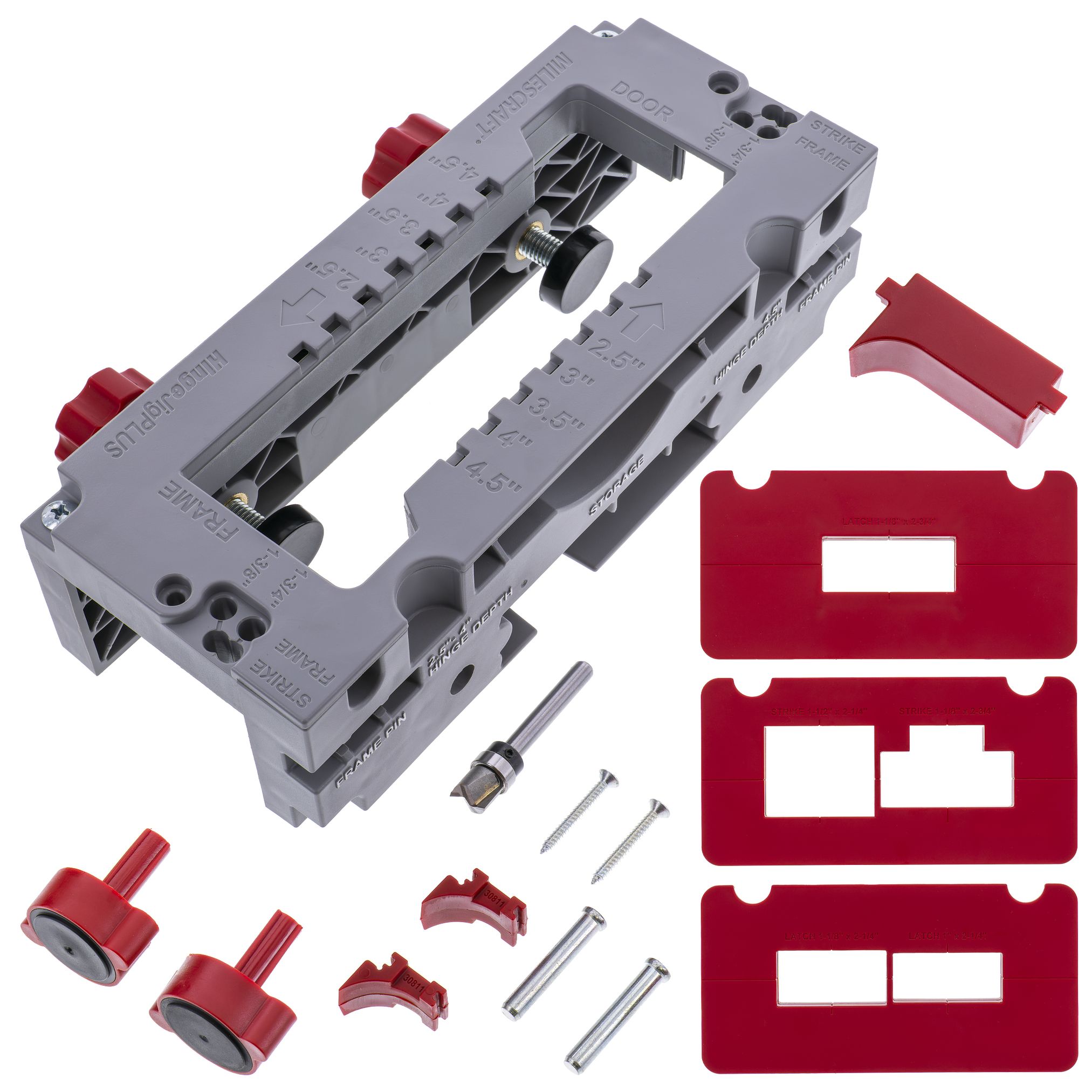

INCLUDES
(1) MILESCRAFT HingeJigPLUS Jig Main Body (1229)
(2) Built-In Clamps
(1) Adjustable Hinge Spacer
(1) 12 mm Bearing-Guided Router Bit

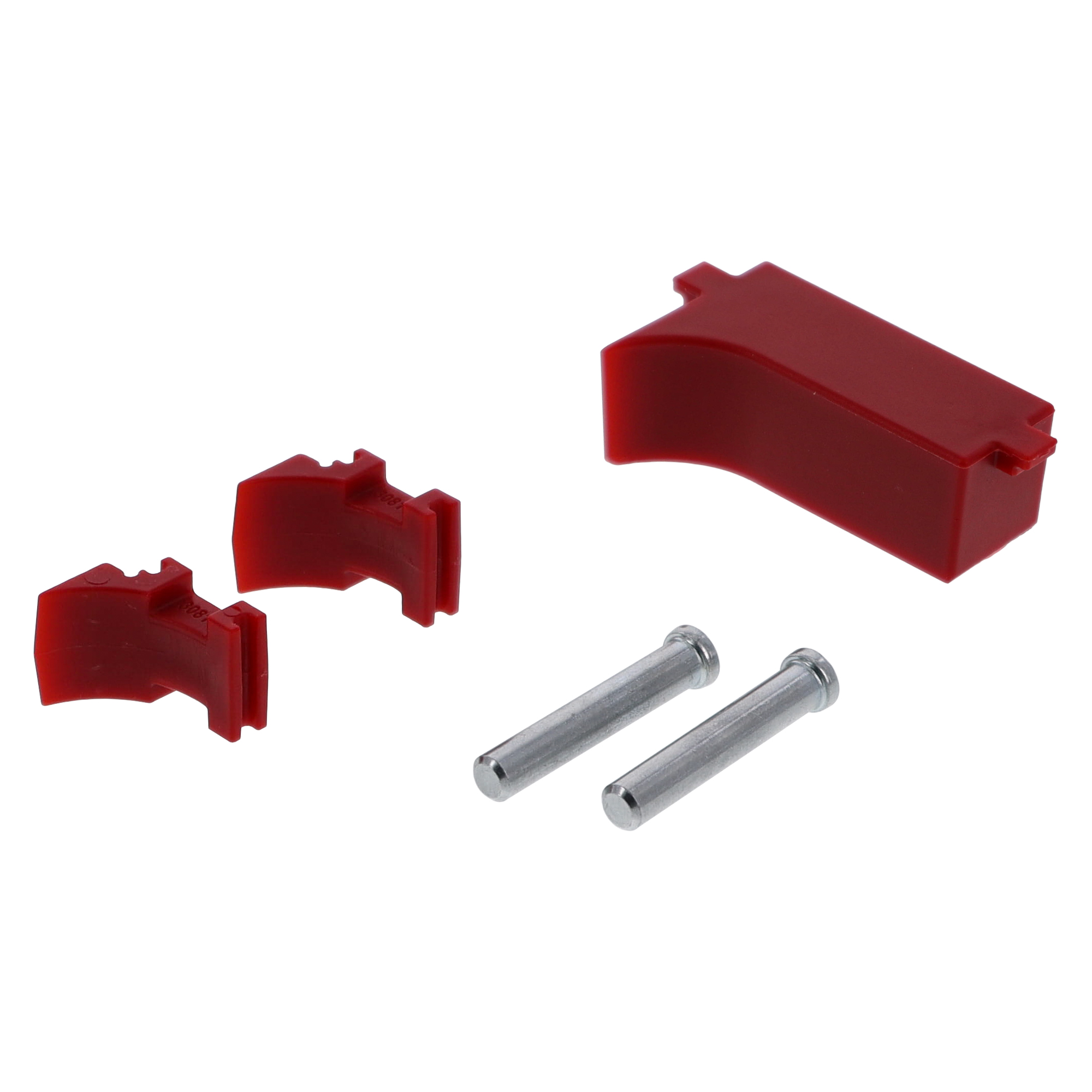

(2) Corner Radius Inserts
(2) Adjustable Backset Plugs
(2) Frame/Jamb Indexing Pins

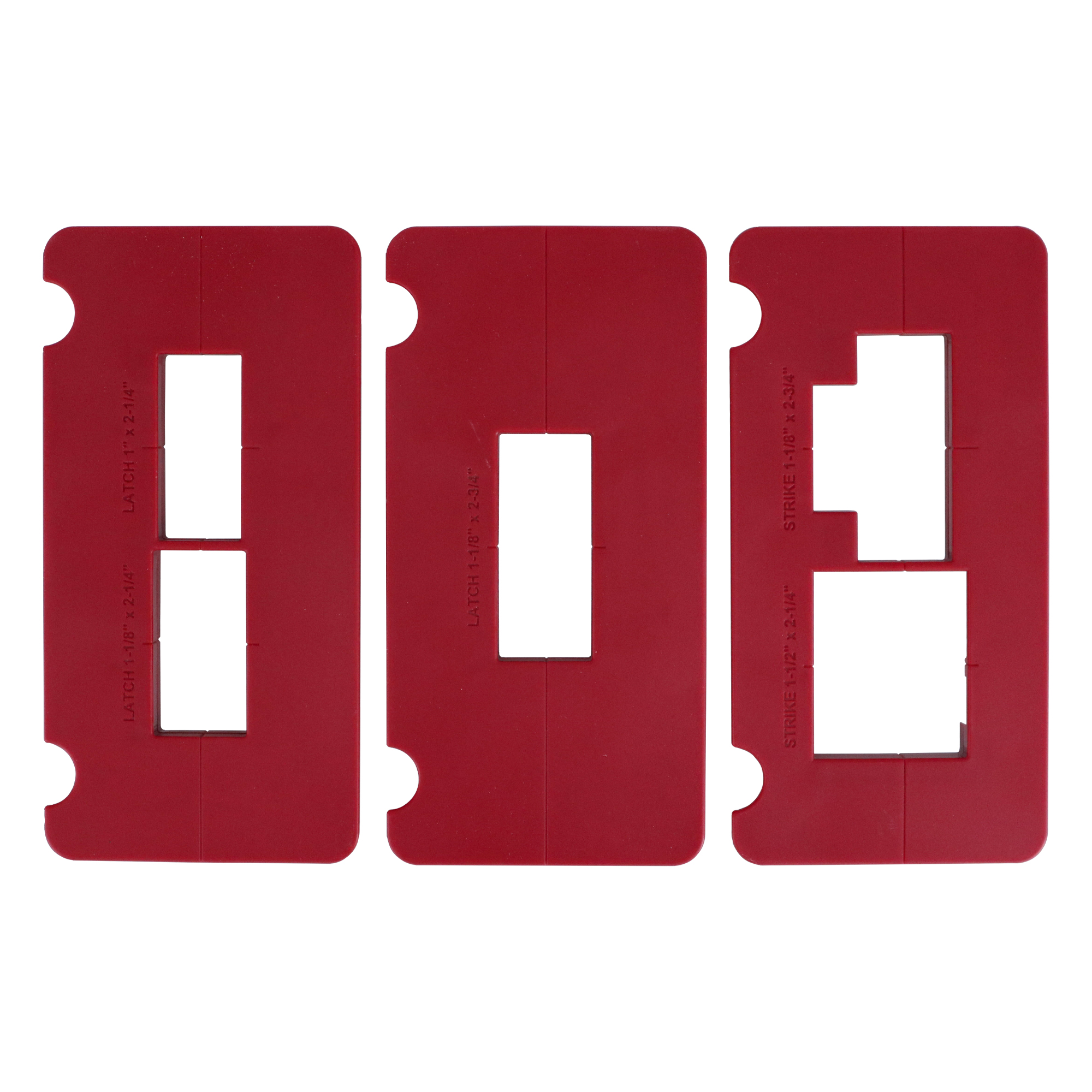

(2) Latch Templates
(1) Strike Plate Template
