SPECTRA 3-Plane Cross-Line Laser Kit with HR1220 Receiver

Description

PRODUCT DESCRIPTION

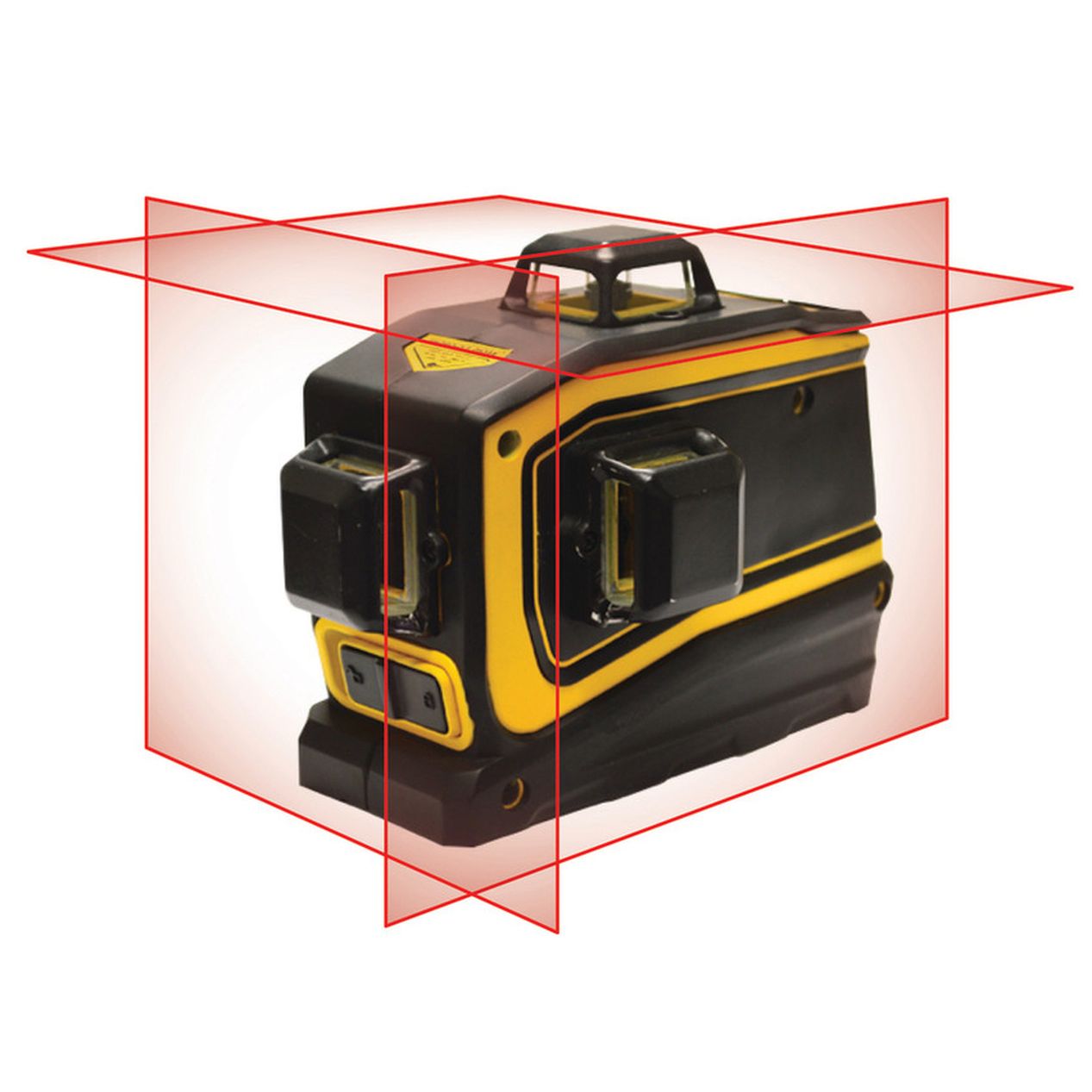

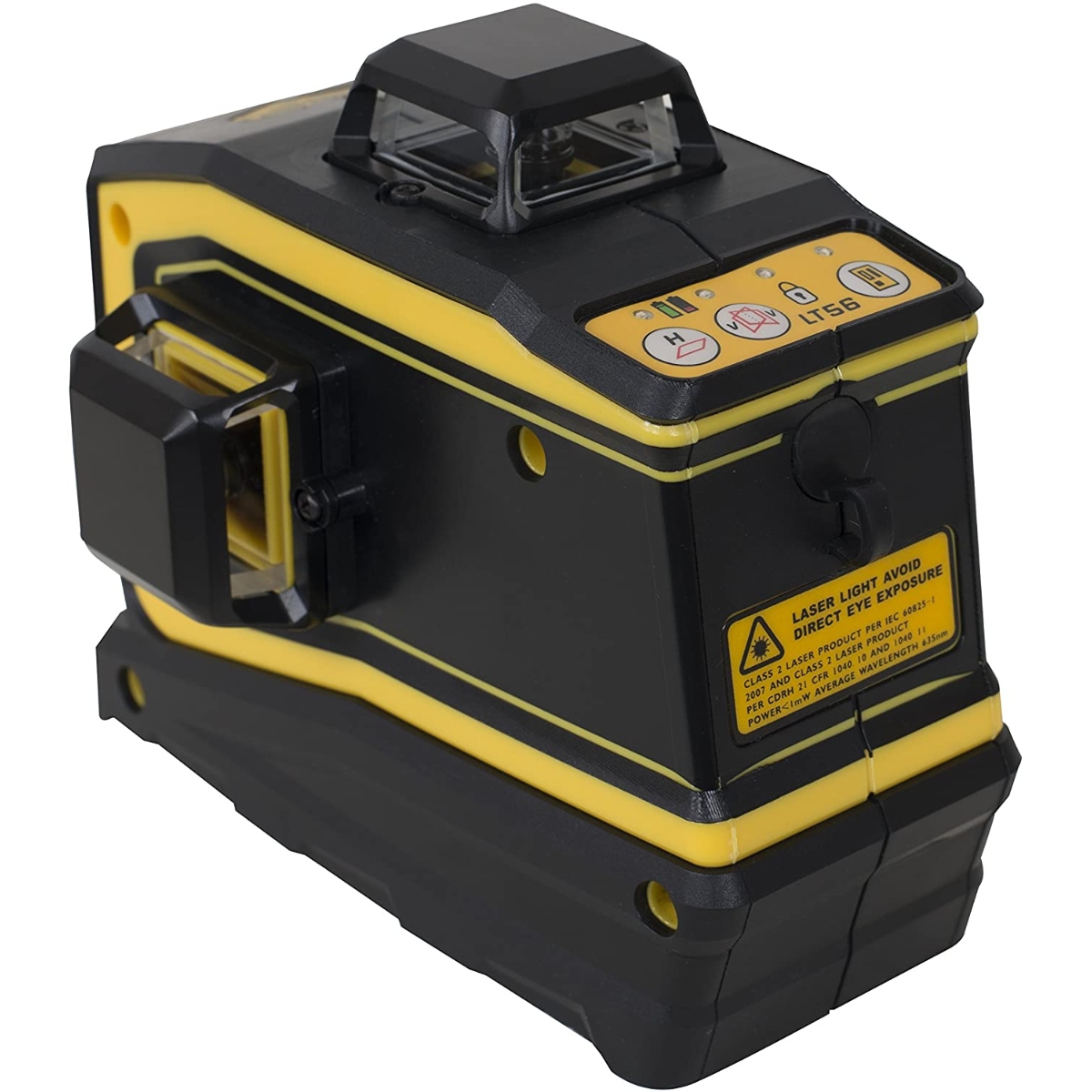

The SPECTRA LT56-2 is a rechargeable self-levelling layout laser that projects three full 360° red laser planes: one horizontal plane and two vertical planes positioned 90° apart. This allows crews to establish level, plumb, square and intersecting reference lines for interior layout, wall positioning, ceiling installation, cabinetry, tile work and other alignment tasks.
The included HR1220 receiver extends the usable range and allows the laser to be detected outdoors or in bright conditions where the beam may be difficult to see. A compensator lock protects the laser during transport and also allows the beams to be projected at an angle for stairs, sloped ceilings and other non-level layouts.

FEATURES
• Projects one horizontal and two vertical 360° laser planes
• Vertical planes intersect at 90° for square layout
• Automatic self-levelling supports fast, accurate setup
• Compensator lock allows angled-line layout and protects the mechanism during transport
• Rechargeable lithium-ion battery reduces reliance on disposable batteries
• HR1220 receiver detects the laser indoors, outdoors and in bright conditions
• HR1220 provides front and rear LCD displays
• Receiver working radius up to 85 m (275 ft.), depending on conditions
• Receiver offers ±1 mm and ±2 mm accuracy settings

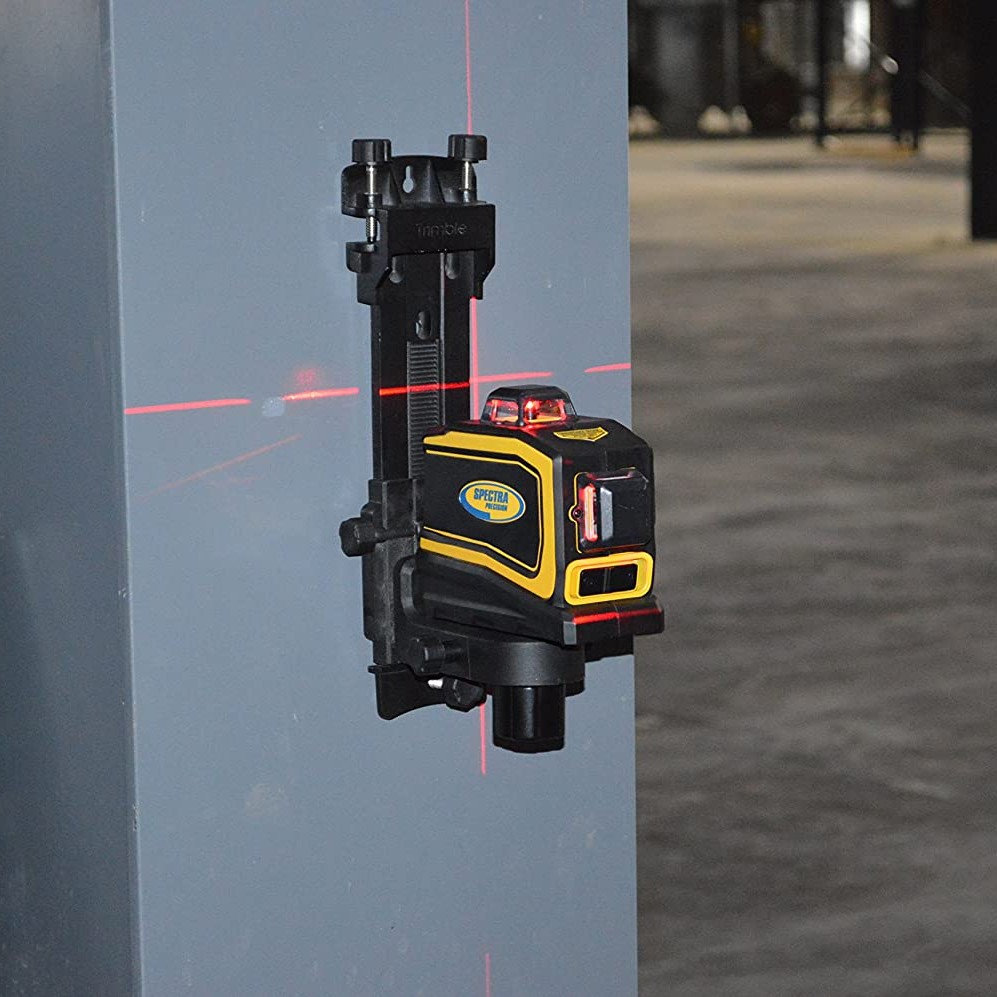

• Magnetic bracket supports positioning on compatible metal surfaces
• Compact housing fits easily into a tool bag or case
• Withstands drops up to 1 m (3 ft.)

APPLICATIONS
• Interior wall and partition layout
• Suspended ceiling installation
• Plumb and vertical alignment
• Square room and corner layout
• Cabinet, millwork and shelving installation
• Tile and flooring layout
• Door and window installation
• Stairways and sloped ceilings
• Interior and exterior elevation transfer

FOR INTERIOR LAYOUT, PLUMB AND SQUARE ALIGNMENT
The LT56-2 is a practical choice for commercial installers, carpenters, drywall crews, electricians, plumbers and finish contractors who need level, plumb and square references from one setup. The three-plane design reduces the need to reposition the laser repeatedly, while the receiver adds useful range for brighter and outdoor working conditions.

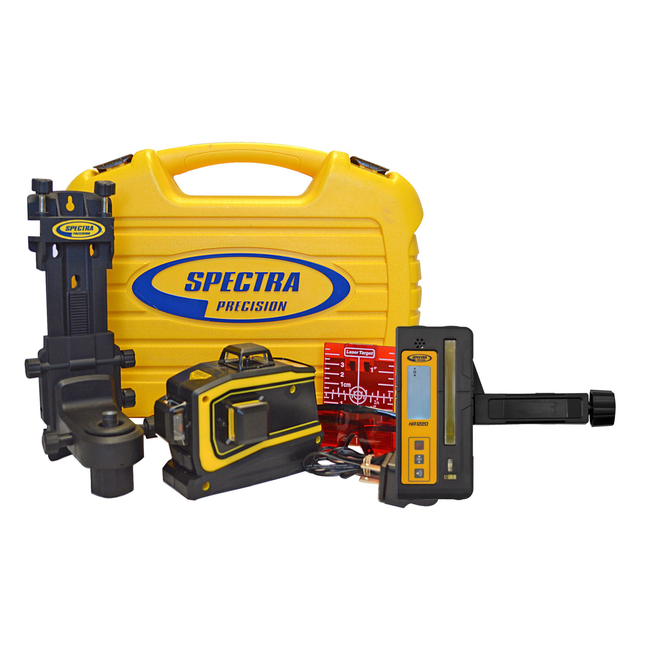

INCLUDES
(1) LT56 3-Plane Cross-Line Laser
(1) HR1220 Laser Receiver
(1) C20 Rod Clamp
(1) Magnetic Bracket
(1) Laser Target
(1) Pair of Red Laser Glasses
(1) Power Supply Adapter
(2) AA Batteries for Receiver
(1) Carrying Case
