SPECTRA Self-Levelling Rotary Laser Kit with Receiver, Tripod and Grade Rod

Description

PRODUCT DESCRIPTION
The SPECTRA LL1505C-2 is a complete self-levelling rotary laser package for concrete forming, foundations, excavation, landscaping, drainage and construction layout. The kit includes the LL1505C laser, HL450 digital receiver, rod clamp, 15 ft. grade rod, aluminium tripod, rechargeable battery, charger and system case, providing the main equipment needed for one-person elevation and level work.
The laser delivers accuracy of 1.5 mm at 30 m and offers selectable 300, 600 and 900 RPM rotation speeds. Bluetooth connectivity allows compatible functions to be controlled through the SPECTRA Laser Remote App, while manual slope adjustment, Height of Instrument Alert and the rugged weather-resistant housing support dependable use on demanding outdoor jobsites

FEATURES
• Automatic horizontal self-levelling
• Accuracy of 1.5 mm at 30 m (1/16″ at 100 ft.)
• Working radius up to 200 m (650 ft.) with the included HL450 receiver
• Selectable rotation speeds of 300, 600 or 900 RPM
• Manual slope adjustment for matching an existing grade
• Bluetooth connectivity supports control through the SPECTRA Laser Remote App
• Height of Instrument Alert stops rotation if the laser is disturbed
• HL450 receiver provides digital elevation readout in inches or millimetres
• HL450 receiver offers fine and medium accuracy settings
• 10 Ah NiMH battery pack provides up to 55 hours of runtime
• Can also operate on four D-cell alkaline batteries
• Battery can be charged inside or outside the laser
• Withstands drops up to 1 m (3 ft.) onto concrete

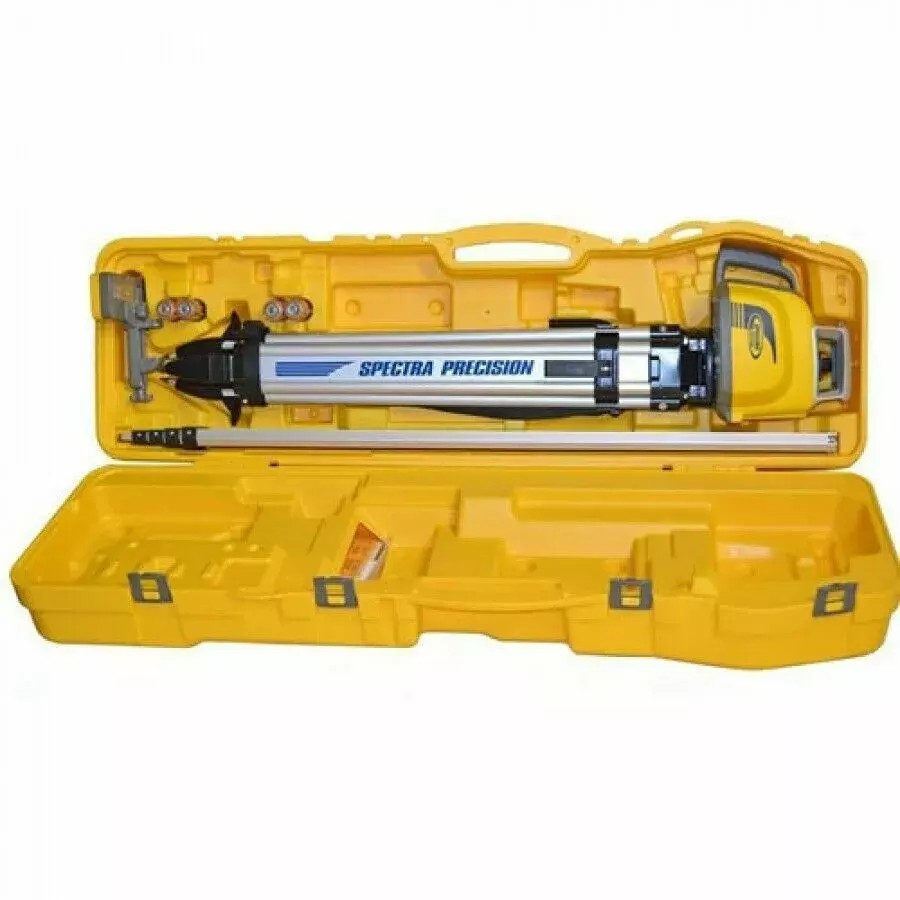

• Complete system case stores the laser, receiver, tripod and grade rod

APPLICATIONS
• Concrete forms, footings and foundations
• Excavation and site preparation
• Checking and transferring elevations
• Drainage and landscaping work
• Agricultural building and site layout
• Driveways, pads and parking areas
• Matching an existing slope
• Machine-receiver applications

FOR LEVELLING, ELEVATION CHECKS, AND SITE LAYOUT
The LL1505C-2 is a practical package for crews that need a durable horizontal rotary laser with the tripod, grade rod and receiver already matched together. It suits level and elevation work especially well, while the manual slope function provides added flexibility for basic drainage and grade-matching tasks.

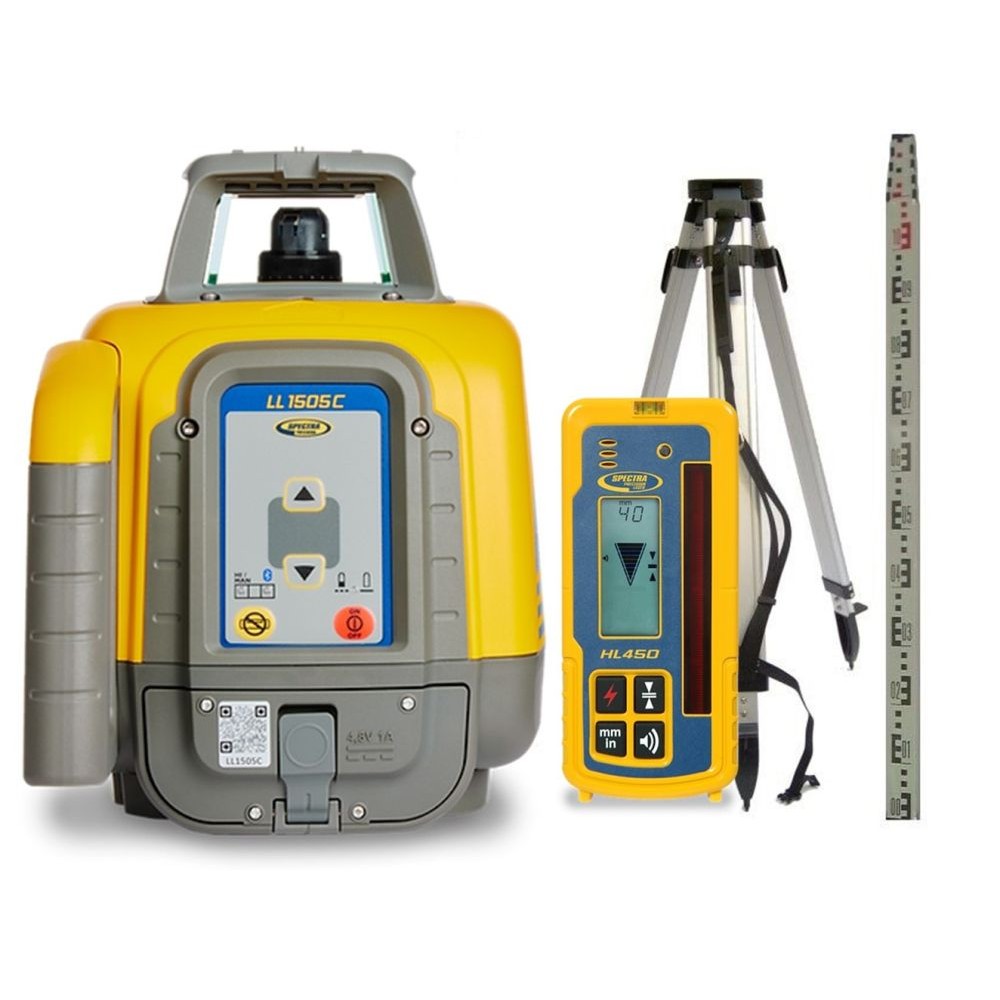

INCLUDES
(1) LL1505C Self-Levelling Rotary Laser
(1) HL450 Digital Receiver
(1) C45 Rod Clamp
(1) B10 NiMH Rechargeable Battery Pack
(1) CH10 Battery Charger
(1) GR152 15 ft. Grade Rod with 1/8″ Graduations
(1) Q104025 Aluminium Tripod
(1) 128995-00 System Carrying Case
