4″ x 6″ Heavy-Duty Plastic Shim Pack, 6-Piece

Description

PRODUCT DESCRIPTION

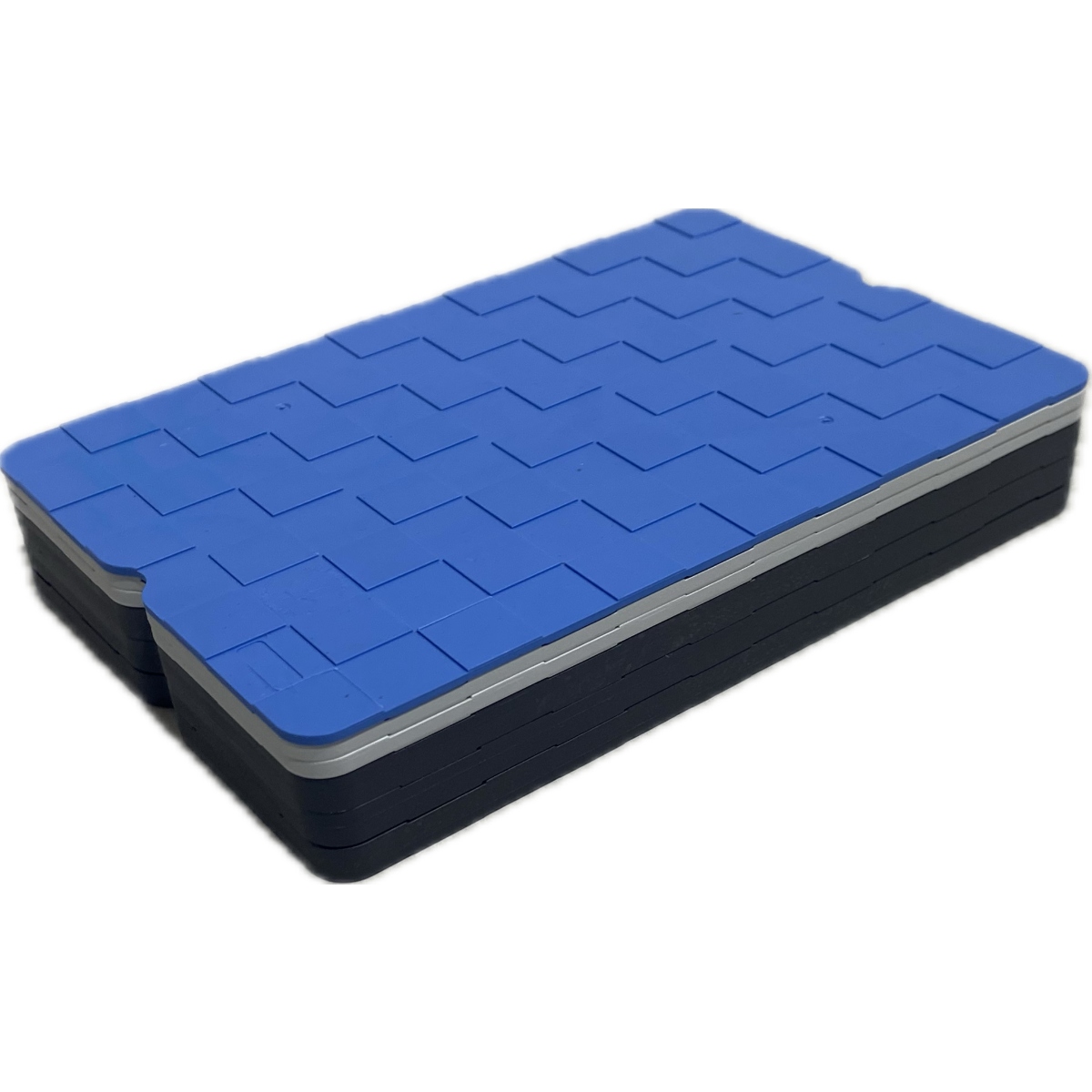

Made in Canada for heavy-duty construction and industrial levelling, this 4″ x 6″ plastic shim pack provides adjustable support for precast concrete panels, tilt-up walls, masonry units and heavy machinery. Each pack contains six colour-coded high-impact polystyrene (HIPS) shims in three thicknesses. Use the layers individually or stack them to reach the required elevation in nominal 1/16″ increments. Raised interlocking ribs help keep the shims aligned when stacked.
Each 4″ x 6″ shim can also be separated lengthwise into two 2″ x 6″ shims for narrower placements. The 1/8″ and 1/4″ layers have moulded score lines for easier splitting, while the 1/16″ layer can be scored with a utility knife before breaking. One complete pack measures approximately 1″ (26 mm) thick and weighs approximately 400 g. Custom pack thicknesses are available for project requirements.

FEATURES
• Heavy-duty plastic shim pack for precast concrete, tilt-up construction, masonry and machinery levelling
• Six removable 4″ x 6″ (102 x 152 mm) HIPS shims
• Colour-coded layers make each thickness easy to identify
• Raised interlocking ribs help keep stacked shims aligned
• Add or remove layers for adjustment in nominal 1/16″ increments
• Each shim separates lengthwise into two 2″ x 6″ shims
• The 1/8″ and 1/4″ shims have moulded score lines for easier splitting
• Approximately 1″ (26 mm) assembled pack thickness
• Approximately 400 g per pack
• Manufactured in Canada
• Custom pack thicknesses available by request
• Bulk packed 40 shim packs per box and 48 boxes per skid – ask for bulk pricing

INDEPENDENT LAB TESTING
Individual shim layers underwent compression testing in accordance with ASTM D695-23. Each layer was subjected to a maximum applied compressive stress equivalent to 11,000 psi, with no cracking or failure observed.
Separate ASTM D732 punch-type shear testing measured shear strengths from 23.48 to 24.09 MPa across the three shim thicknesses, with an average of 23.75 MPa.

INCLUDES

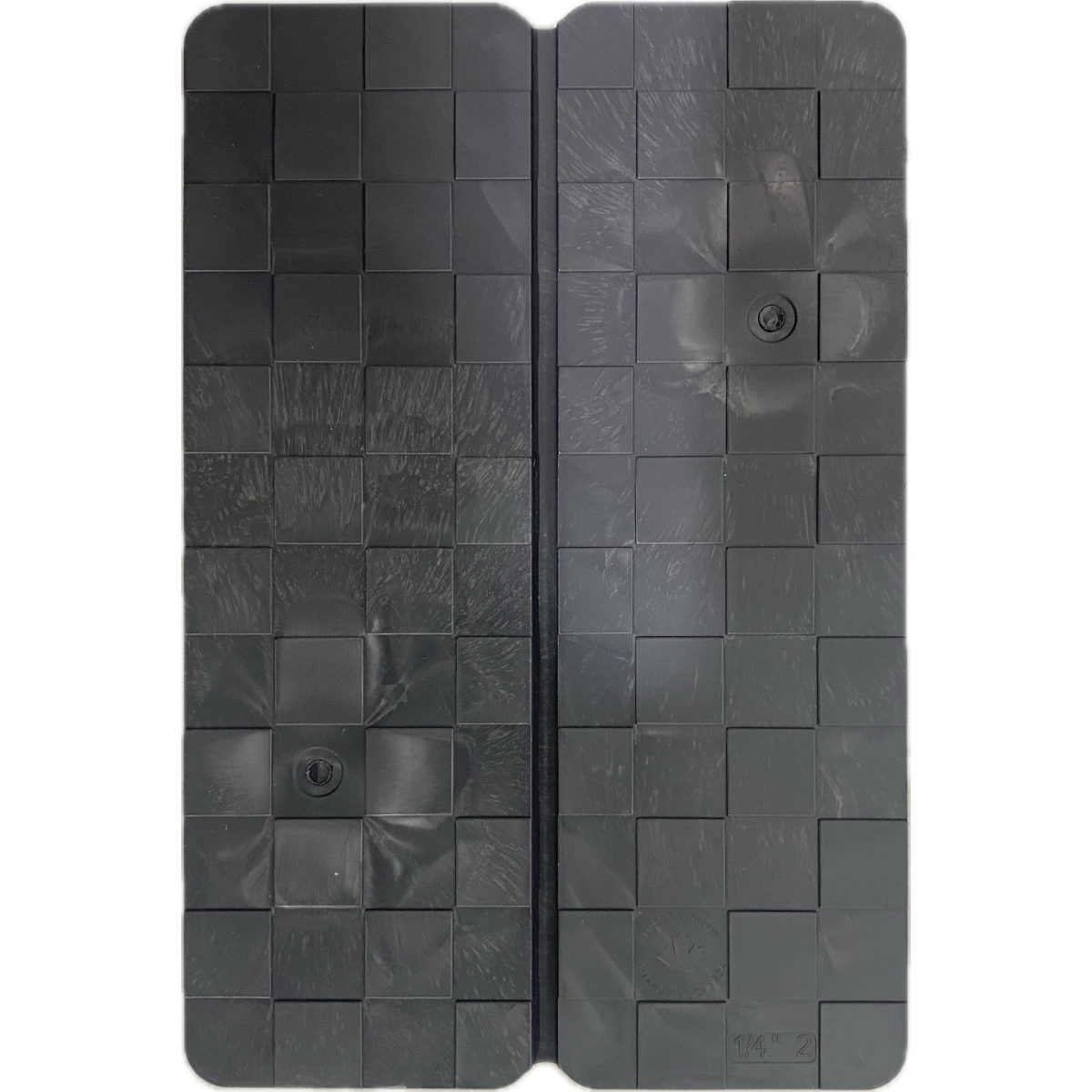

(3) Dark Grey 4″ x 6″ x 1/4″ Plastic Shims

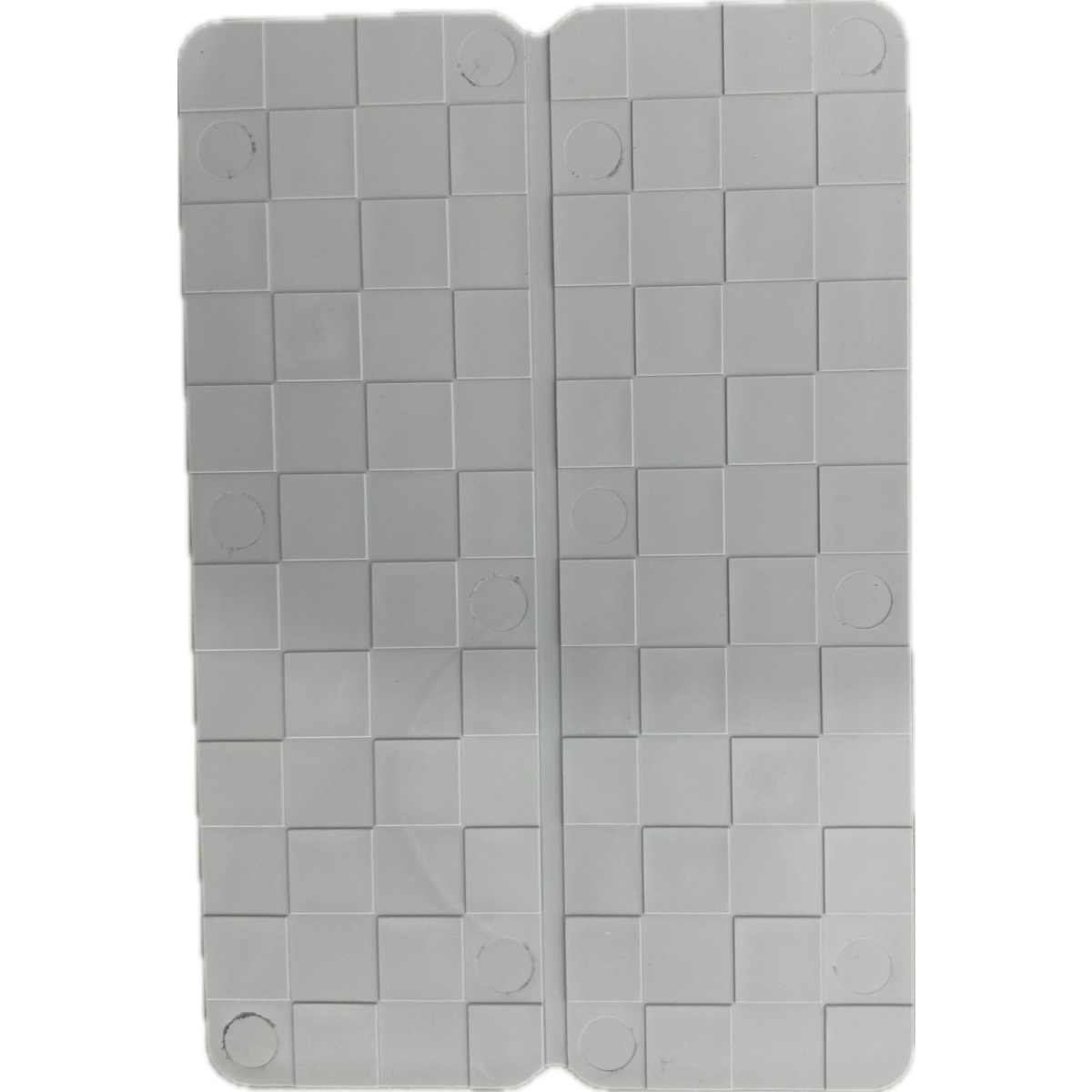

(2) Light Grey 4″ x 6″ x 1/8″ Plastic Shims

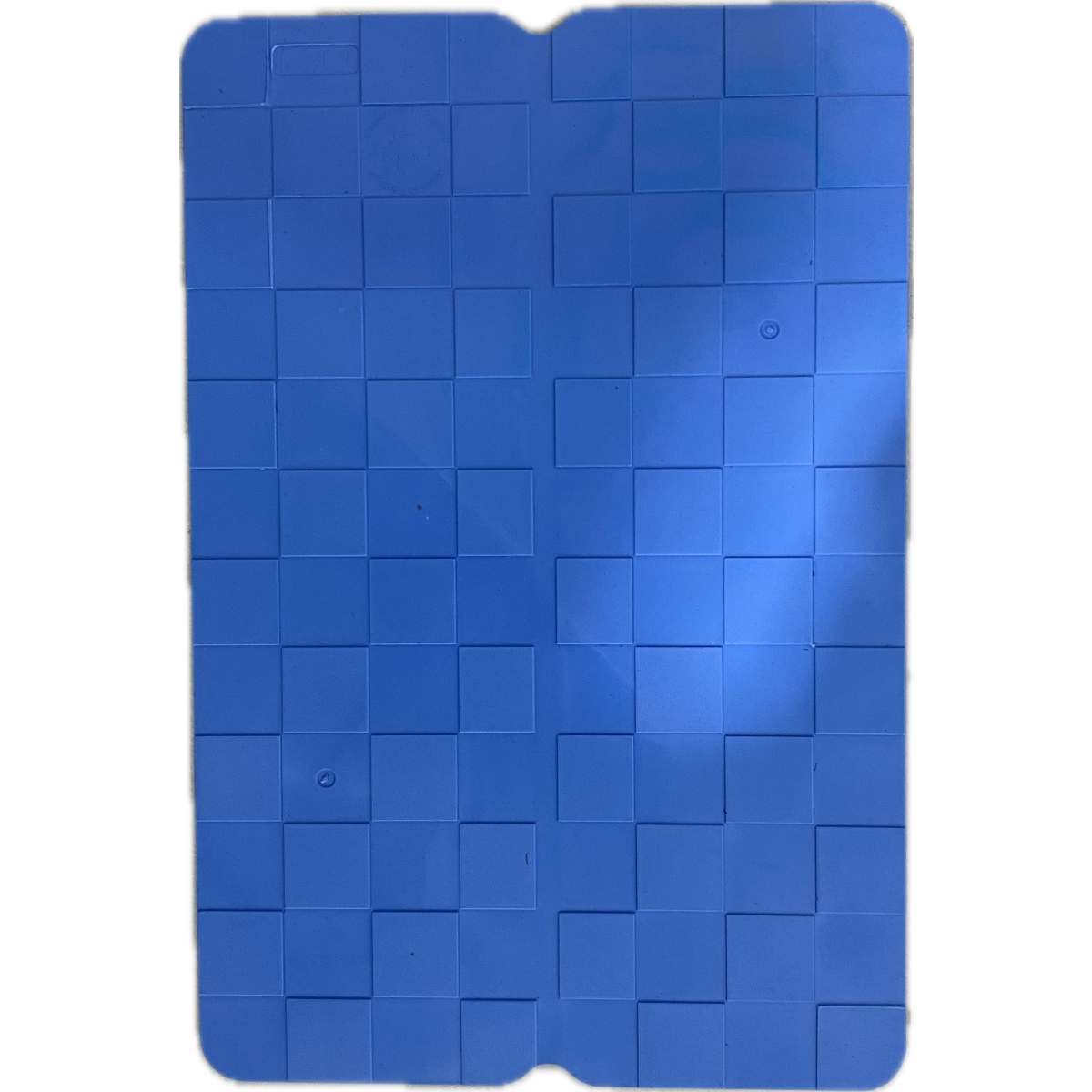

(1) Blue 4″ x 6″ x 1/16″ Plastic Shim
