SPECTRA Self-Levelling Rotary Laser Kit with HL760 Receiver

Description

PRODUCT DESCRIPTION

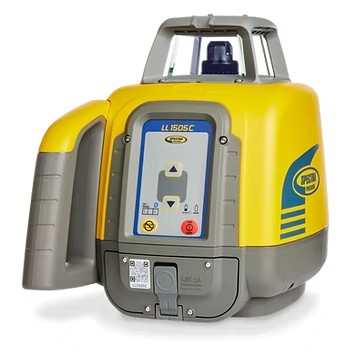

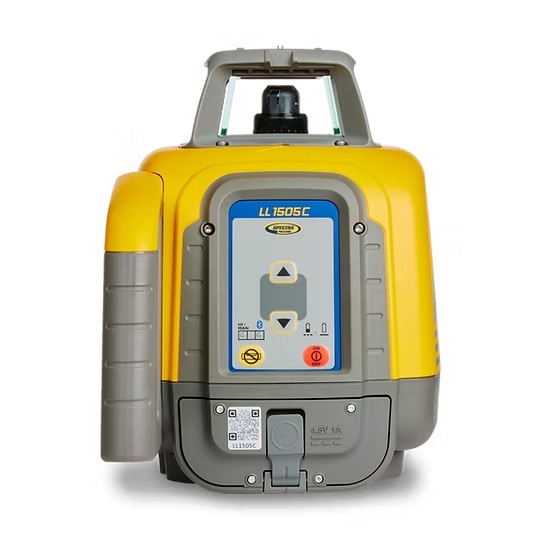

The SPECTRA LL1505C is an automatic self-levelling rotary laser for concrete forms, foundations, excavation, grading, drainage, landscaping and construction layout. Paired with the included HL760 digital receiver, it provides an operating diameter up to 1,200 m (4,000 ft.) with accuracy of 1.5 mm at 30 m, giving crews a dependable elevation reference across large jobsites.
Bluetooth connectivity allows compatible laser functions to be controlled through the SPECTRA Laser Remote App. The HL760 also enables Plane Match for establishing grade between two points over unknown ground, while Height of Instrument Alert, selectable rotation speeds and the IP66 housing support accurate, reliable operation in demanding outdoor conditions.

FEATURES
• Automatic horizontal self-levelling
• Accuracy of 1.5 mm at 30 m (1/16″ at 100 ft.)
• Operating diameter up to 1,200 m (4,000 ft.) with the included HL760 receiver
• Selectable rotation speeds of 300, 600 or 900 RPM
• Plane Match establishes grade between two points using the HL760 receiver
• Manual slope adjustment for matching an existing grade
• Bluetooth connectivity supports the SPECTRA Laser Remote App
• Height of Instrument Alert stops rotation if the laser is disturbed
• HL760 receiver provides digital elevation readout and six accuracy settings
• HL760 includes a large 5″ reception area for easier beam detection
• 10 Ah NiMH battery pack provides up to 55 hours of runtime
• Can also operate on four D-cell alkaline batteries
• Battery can be charged inside or outside the laser
• IP66-rated housing resists dust and water
• Withstands drops up to 1 m (3 ft.) onto concrete

APPLICATIONS
• Concrete forms, footings and foundations
• Excavation and site preparation
• Checking and transferring elevations
• Grading and drainage work
• Landscaping and agricultural construction
• Driveways, pads and parking areas
• Matching an existing slope
• Machine-receiver applications

FOR LONG RANGE LEVELLING AND GRADE MATCHING
The LL1505C package suits contractors who need a rugged horizontal rotary laser with greater working range and a more capable receiver than the HL450 package provides. The HL760’s digital readout and Plane Match capability make this kit especially useful for large sites, precise elevation checks and matching unknown grades.

INCLUDES
(1) LL1505C Self-Levelling Rotary Laser
(1) HL760 Digital Readout Receiver
(1) C70 Rod Clamp
(1) B10 NiMH Rechargeable Battery Pack
(1) CH10 Battery Charger
(1) 128994-00 Small Carrying Case
