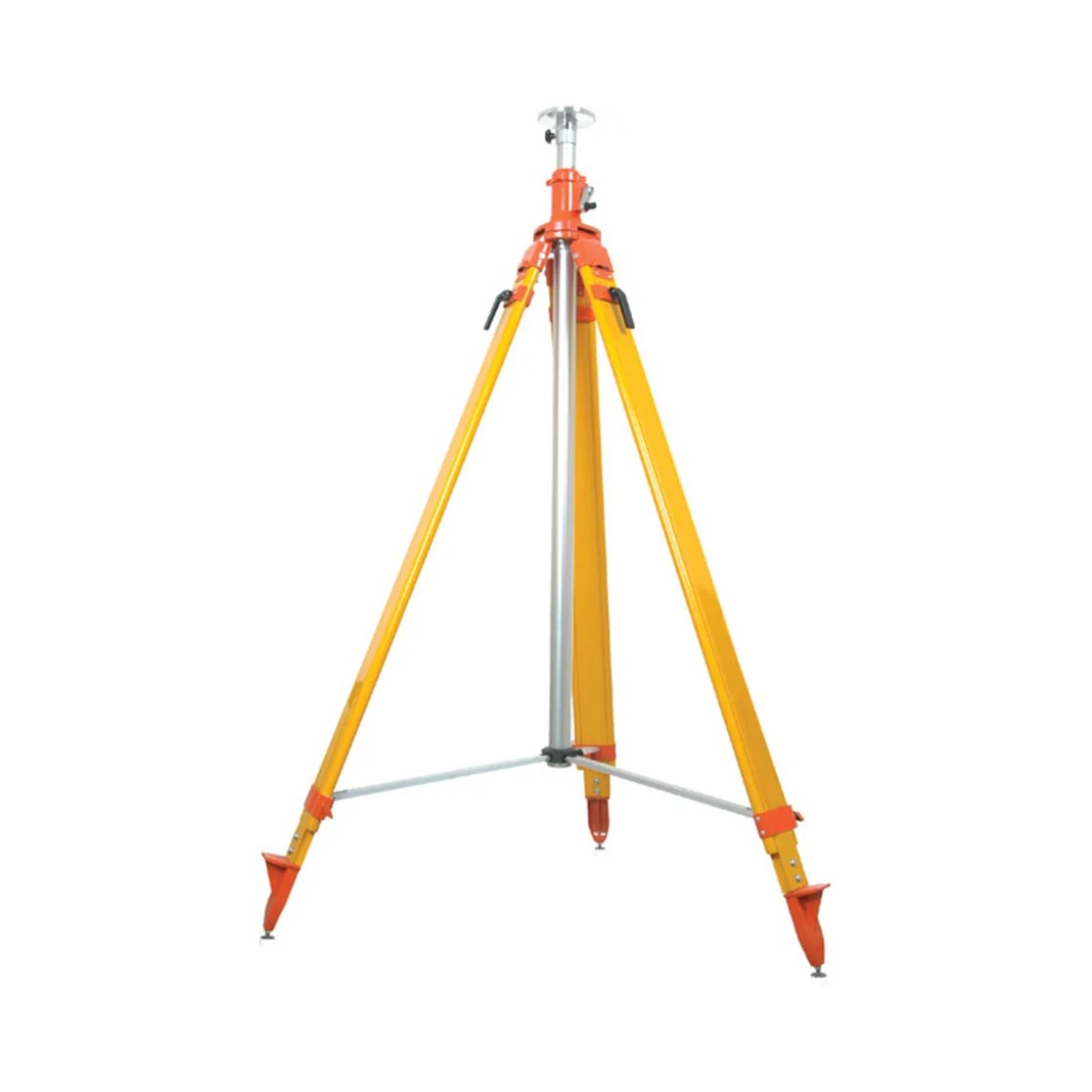

SECO 12.4 ft Heavy-Duty Fiberglass Elevator Tripod

Description

PRODUCT DESCRIPTION
The SECO 5321-17-ORG Heavy-Duty Fiberglass Elevator Tripod provides a stable, extra-tall platform for GPS antennas and other surveying or construction layout instruments. Its adjustable centre column and extendable legs provide a fully extended working height of 12.4 ft, making it useful when additional instrument height is needed for machine control, site layout, grading, and surveying applications.
Fiberglass legs and reinforcing dowels provide strength, rigidity, and resistance to outdoor weather conditions. Dual clamps, twist locks, and lockable stabilizer struts help keep the tripod securely positioned, while pointed metal feet with rubber covers allow it to be set up on either soft ground or hard surfaces. The detachable round head includes a standard 5/8″-11 mounting thread for compatible instruments and GPS antennas.

FEATURES
• Heavy-duty fiberglass legs and dowels provide strength, rigidity, and resistance to weathering
• Fully extended leg and centre column height of 12.4 ft (3.80 m)
• Collapsed height of approximately 5.97 ft (1.82 m)
• Adjustable centre column provides 3.69 ft (1.12 m) of lift
• Centre column supports up to 66 lb when collapsed and 15.4 lb when fully elevated
• Dual clamps and twist locks provide secure leg adjustment
• Lockable leg stabilizer struts improve stability
• Pointed metal feet include replaceable rubber covers for hard surfaces
• Detachable flat round head with 5/8″-11 mounting thread
• Retainer strap helps secure the tripod during transport and storage
• Orange hardware

FOR EXTRA HEIGHT SURVEYING AND MACHINE CONTROL SETUPS
The 12.4 ft maximum height makes this tripod particularly useful for GPS antenna setups, machine-control applications, and layout work where a standard tripod cannot position the instrument high enough. Its combination feet and stabilizer struts also make it practical for crews moving between finished surfaces, gravel, soil, and uneven jobsite terrain.

INCLUDES
(1) SECO 5321-17-ORG Heavy-Duty Fiberglass Elevator Tripod
