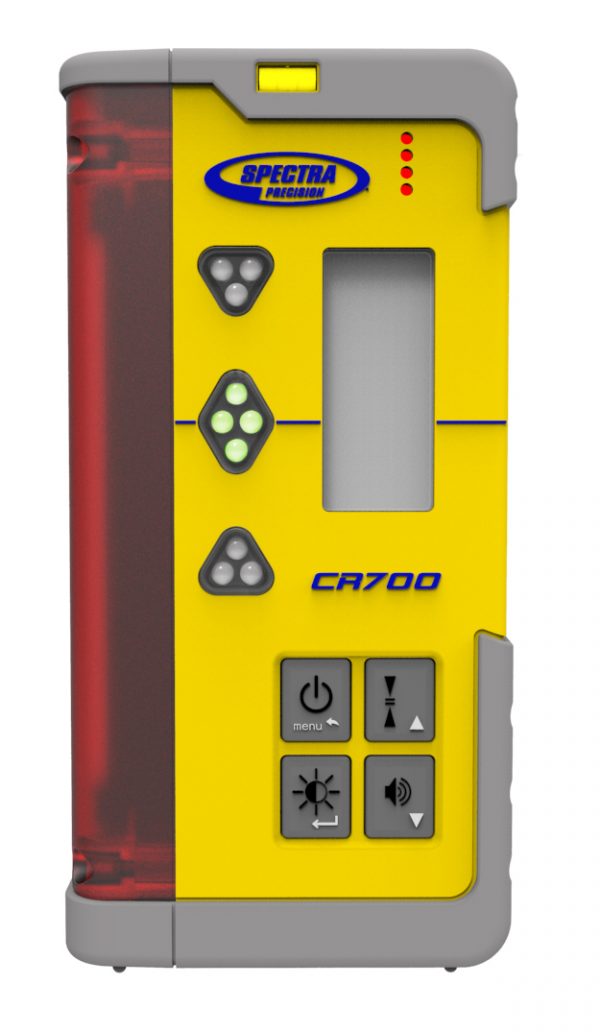

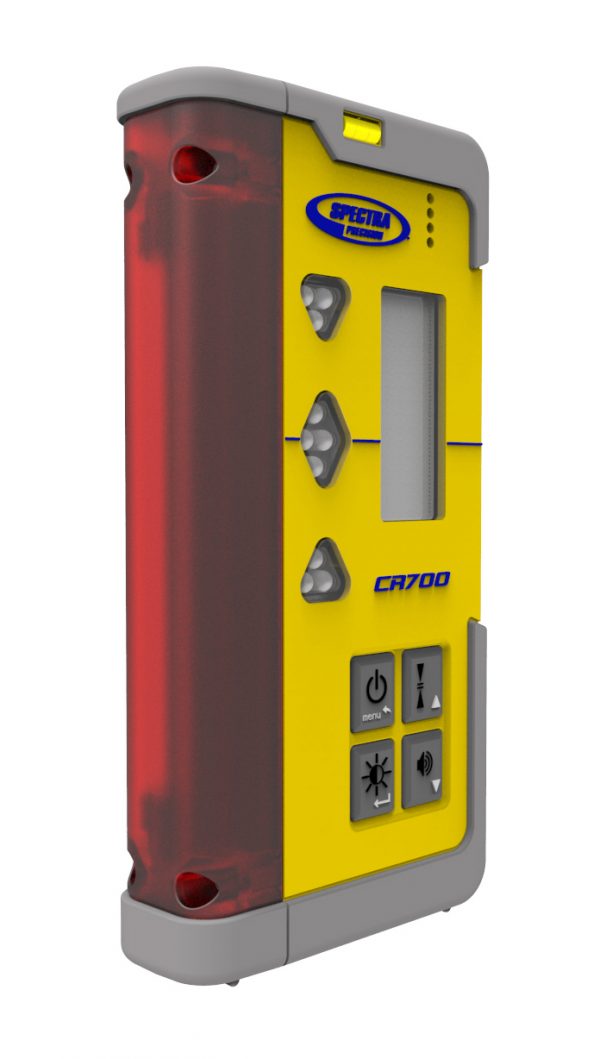

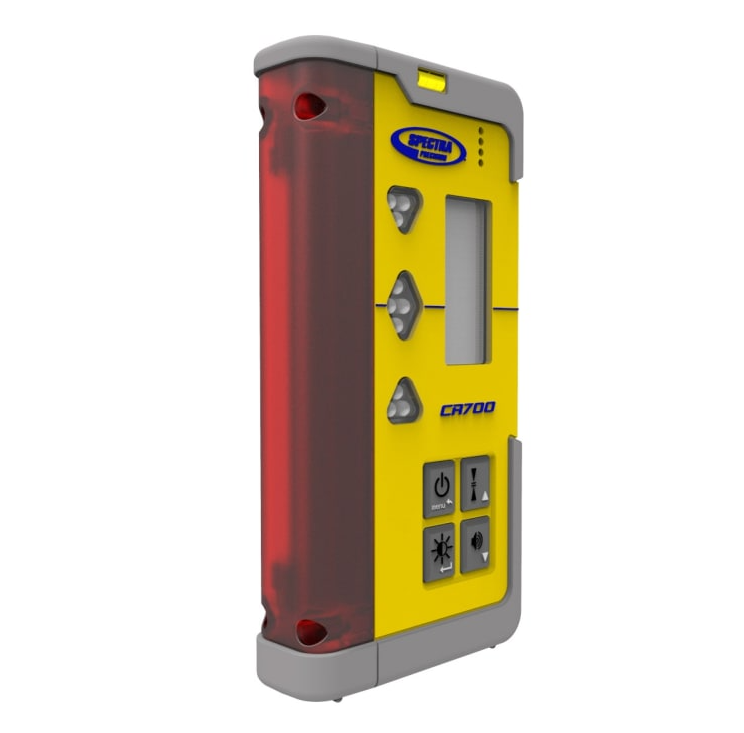

Spectra CR700 Combination Machine & Grade Rod Laser Receiver

Description

PRODUCT DESCRIPTION

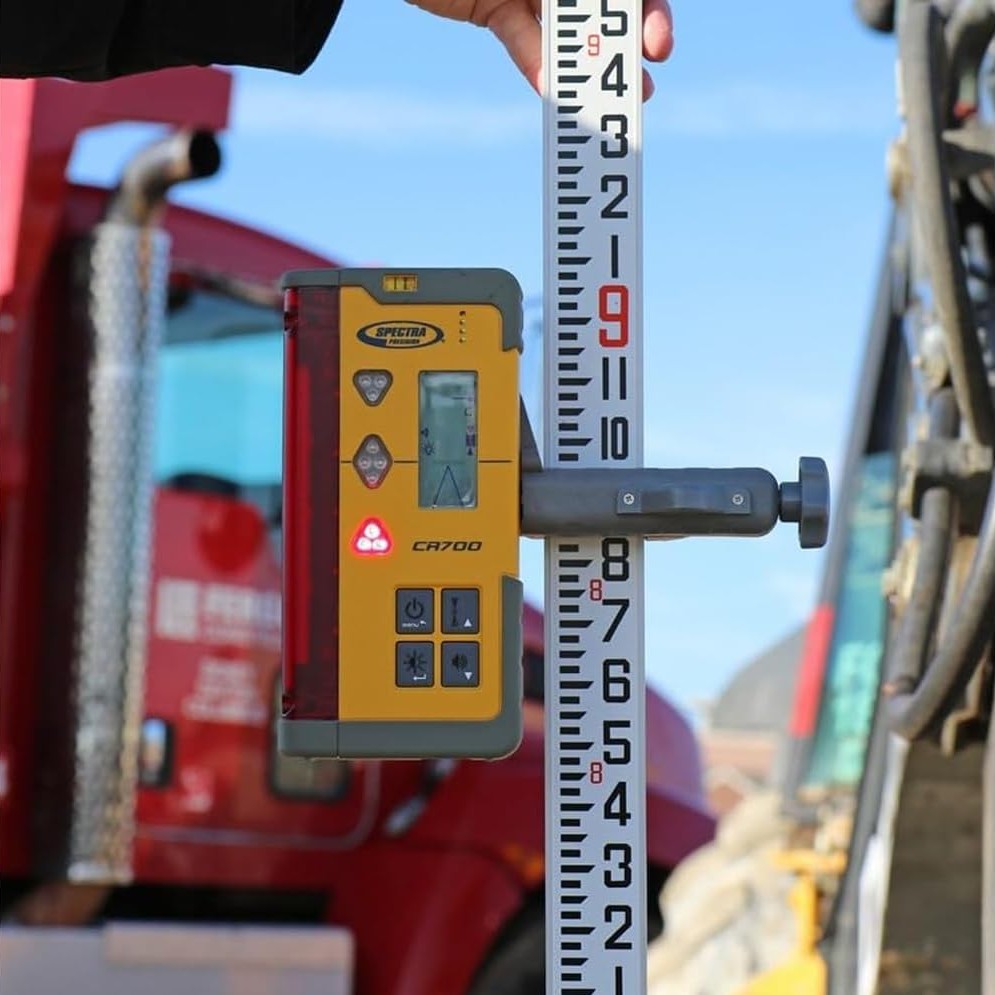

The Spectra CR700 Combination Laser Receiver provides grade information from either the operator’s seat or a traditional grade rod. It can be mounted directly to compact grading and excavating equipment using the included C71 Magnetic Clamp, then moved to a grade rod using the included C70 Rod Clamp. This dual-purpose design makes it practical for excavation, trenching, grading, drainage, landscaping, and site preparation work.
Bright red, green, and blue LED arrows help the operator see whether the machine or rod is above, below, or on grade, while the digital readout shows the exact distance from on-grade. The CR700 is IP67 rated for protection against dust and water and is backed by a 3 m (10 ft) drop guarantee. It also supports compatible Spectra laser-radio functions and can be paired with an HL760 receiver for remote grade display applications.

FEATURES
• Bright LED Arrow Displays – red/green/blue LED arrows are super bright and visible in all conditions
• Magnetic Clamp – new C71 magnetic clamp will not slip on the machine no matter how rough the work is
• Light Bar Technology – patented laser reception technology delivers the most accurate, consistent and reliable performance
• Laser Radio – the CR700 is radio-compatible with the GL400N / GL600N series grade lasers and the HV302 enabling the use of time saving functions such as Grade Match, Fingerprinting, PlaneLok and Axis Alignment
• IP67 – dustproof, waterproof, weatherproof
• 3 m (10 ft) Drop – almost destruction proof, extremely robust; eliminates downtime
• Digital Read-Out – the CR700 provides the exact distance from on-grade numerically
• Remote Display – pair the CR700 receiver with an HL760 receiver to be used as a remote display, useful for machine operators and site supervisors
• Backlight – Receiver can be viewed in the dark or low light conditions
• Vertical Drift Alarm – Warns if the laser is disturbed when using in the vertical mode

FOR MACHINE GRADING AND GRADE-ROD WORK
The CR700 is a practical choice for contractors who need one receiver that can move between equipment and ground-level layout work. Machine mounting helps operators check and maintain grade from the cab, while the rod clamp allows the same receiver to be used for conventional elevation and site-layout measurements. It is especially useful for smaller machines and jobs where a permanently installed machine-control system is not required.

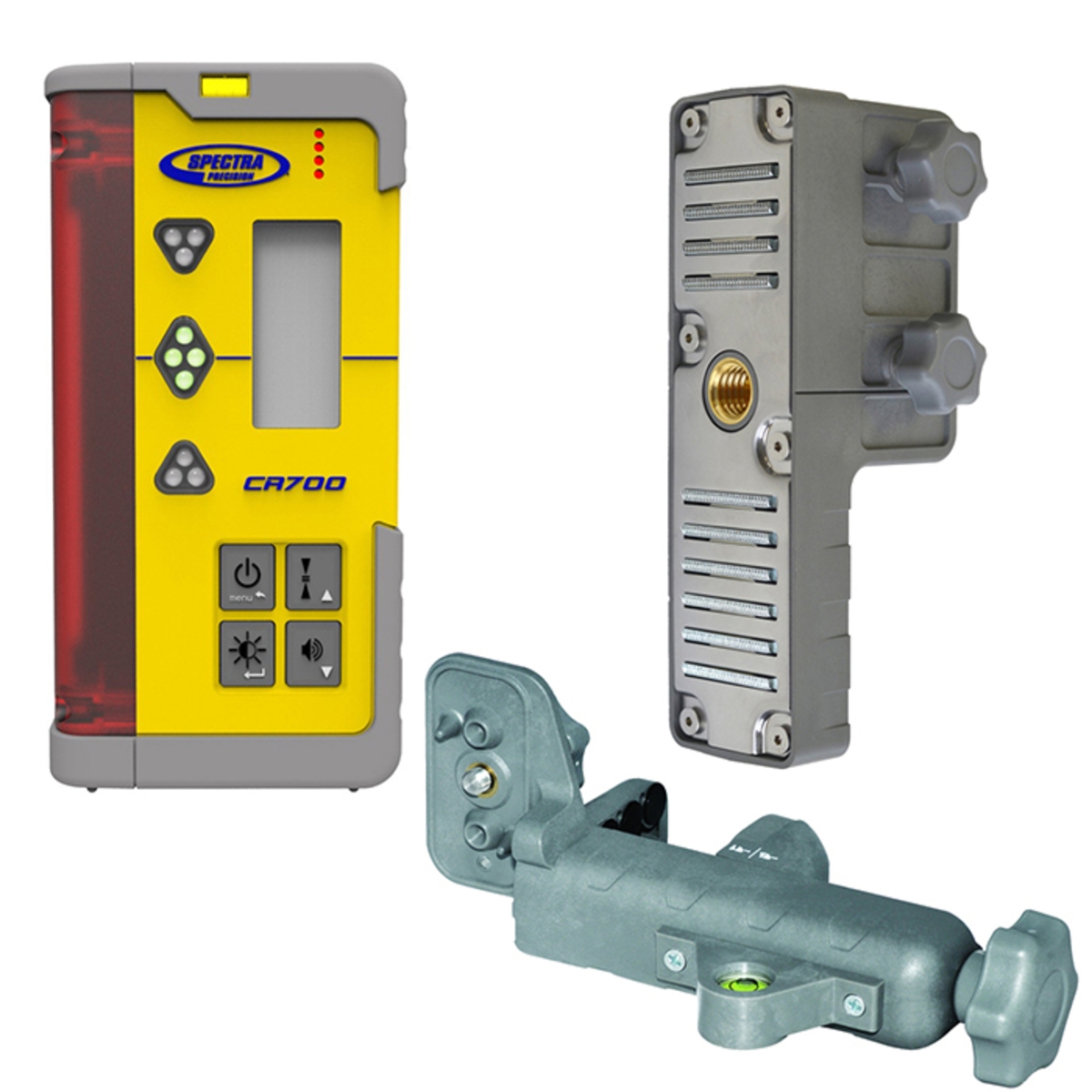

INCLUDES
(1) Spectra CR700 Combination Laser Receiver
(1) Spectra C70 Rod Clamp
(1) Spectra C71 Magnetic Clamp
